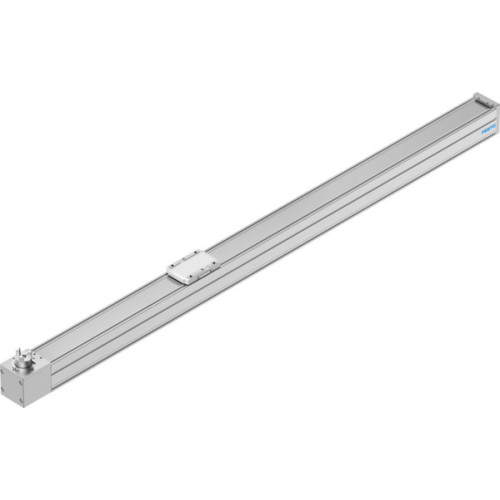

ELGC-TB-KF-60-1500 Toothed belt axis

Manufacturer's No: ELGC-TB-KF-60-1500     Manufacturer: Festo
ELGC-TB-KF-60-1500 Toothed belt axis

Availability On Request

£792.85
  • Type: Toothed belt axis
  • Effective diameter of drive pinion: 24.83 mm
  • Working stroke: 1500 mm
  • Size: 60
  • Toothed-belt pitch: 3 mm
  • Design: Electromechanical linear axis with toothed belt
  • Motor type options: Stepper motor, Servo motor
  • Position detection: Via proximity switch, inductive sensors
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.5 m/s

Read more

  • Repetition accuracy: ±0.1 mm
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Max. drive torque: 1.49 Nm
  • Max. force: Fy 3641 N, Fz 3641 N
  • Max. total axis force: Fy 600 N, Fz 1800 N
  • Max. idle running transfer resistance: 15.6 N
  • Max. moments: Mx 29.1 Nm, My 31.8 Nm, Mz 31.8 Nm
  • Moments at theoretical life value of 100 km: Mx 107 Nm, My 117 Nm, Mz 117 Nm
  • Distance between slide surface and guide centre: 54.6 mm
  • Max. feed force: 120 N
  • Frictional torque independent of load: 0.194 Nm
  • Mass moment of inertia: It 29800 Y12
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 482 g
  • Product weight: 8153 g
  • Material: End cap - Painted die-cast aluminium, Profile - Anodised wrought aluminium alloy, Cover tape - Stainless steel strip, Drive cover - Painted die-cast aluminium, Guide slide & rail - Steel, Pulleys - High-alloy stainless steel, Slide - Die-cast aluminium, Toothed belt - Polychloroprene with glass fibre


Product

Manufacturer Material ID -
ELGC-TB-KF-60-1500
Net Weight -
8.50kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
UNSPSC -
31251600
