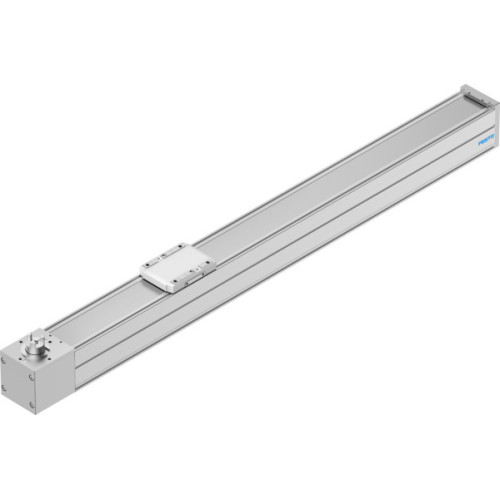

ELGC-TB-KF-80-1000 Toothed belt axis

Manufacturer's No: ELGC-TB-KF-80-1000     Manufacturer: Festo
ELGC-TB-KF-80-1000 Toothed belt axis

Availability Back Order

£721.07
  • Product: ELGC-TB-KF-80-1000 Toothed Belt Axis
  • Effective Diameter of Drive Pinion: 33.42 mm
  • Working Stroke: 1000 mm
  • Size: 80
  • Toothed-Belt Pitch: 3 mm
  • Max. Acceleration: 15 m/s²
  • Max. Speed: 1.5 m/s
  • Repetition Accuracy: ±0.1 mm
  • Max. Drive Torque: 4.178 Nm
  • Max. Force Fy: 5543 N

Read more

  • Max. Force Fz: 5543 N
  • Max. Force Fy Total Axis: 900 N
  • Max. Force Fz Total Axis: 2700 N
  • Max. Moment Mx: 59.8 Nm
  • Max. Moment My: 56.2 Nm
  • Max. Moment Mz: 56.2 Nm
  • Distance Between Slide Surface and Guide Centre: 72.5 mm
  • Max. Feed Force Fx: 250 N
  • Frictional Torque Independent of Load: 0.413 Nm
  • Moving Mass: 901 g
  • Weight of Slide: 272 g
  • Product Weight: 10784 g
  • Material End Cap: Painted Die-Cast Aluminium
  • Material Profile: Anodised Wrought Aluminium Alloy
  • Material Cover Tape: Stainless Steel Strip
  • Material Drive Cover: Painted Die-Cast Aluminium
  • Material Guide Slide: Steel
  • Material Guide Rail: Steel
  • Material Pulleys: High-Alloy Stainless Steel
  • Material Slide: Die-Cast Aluminium
  • Material Toothed Belt: Polychloroprene with Glass Fibre

Accessories

ZBH-7-B Centring sleeve

Product Code - 8146544
Price £1.32
Back Order


Product

Manufacturer Material ID -
ELGC-TB-KF-80-1000
Net Weight -
10.60kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
UNSPSC -
31251600
