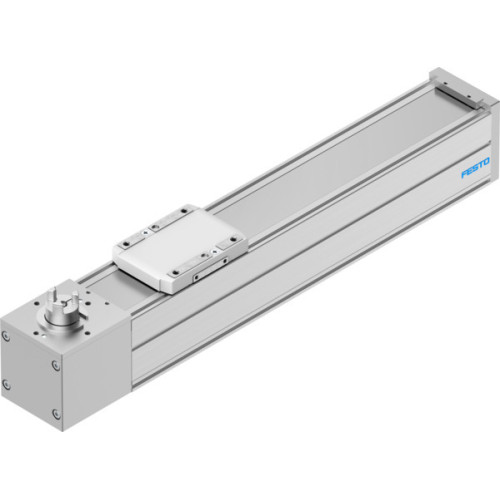

ELGC-TB-KF-80-300 Toothed belt axis

Manufacturer's No: ELGC-TB-KF-80-300     Manufacturer: Festo
ELGC-TB-KF-80-300 Toothed belt axis

Availability On Request

£556.69
  • Toothed belt axis ELGC-TB-KF-80-300
  • Effective diameter of drive pinion: 33.42 mm
  • Working stroke: 300 mm
  • Toothed-belt pitch: 3 mm
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.5 m/s
  • Repetition accuracy: ±0.1 mm
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Degree of protection: IP40

Read more

  • Max. drive torque: 4.178 Nm
  • Max. force Fy: 5543 N
  • Max. force Fz: 5543 N
  • Max. force Fy total axis: 900 N
  • Max. force Fz total axis: 2700 N
  • Max. moment Mx: 59.8 Nm
  • Max. moment My: 56.2 Nm
  • Max. moment Mz: 56.2 Nm
  • Distance between slide surface and guide centre: 72.5 mm
  • Max. feed force Fx: 250 N
  • Frictional torque independent of load: 0.413 Nm
  • Mass moment of inertia JH per metre of stroke: 0.1927 kgm²
  • Mass moment of inertia JL per kg of working load: 2.793 kgm²
  • Mass moment of inertia JO: 2.912 kgm²
  • Reference service life: 5000 km
  • Moving mass: 901 g
  • Weight of slide: 272 g
  • Product weight: 5685 g
  • Basic weight for 0 mm stroke: 3500 g
  • Additional weight per 10 mm stroke: 73 g
  • Dynamic deflection (moving load): 0.05% of the axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of the axis length
  • Material end cap: Painted die-cast aluminium
  • Material profile: Anodised wrought aluminium alloy
  • Material cover tape: Stainless steel strip
  • Material drive cover: Painted die-cast aluminium
  • Material guide slide: Steel
  • Material guide rail: Steel
  • Material pulleys: High-alloy stainless steel
  • Material slide: Die-cast aluminium
  • Material toothed belt: Polychloroprene with glass fibre


Product

Manufacturer Material ID -
ELGC-TB-KF-80-300
Net Weight -
5.51kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
UNSPSC -
31251600
