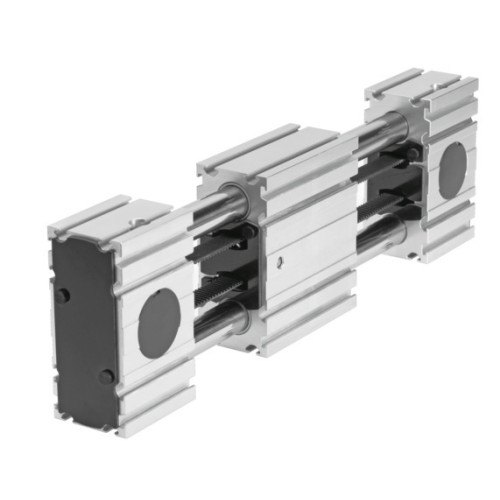

ELGR-TB-35-100-0H Toothed belt axis

Manufacturer's No: ELGR-TB-35-100-0H     Manufacturer: Festo
ELGR-TB-35-100-0H Toothed belt axis

Availability On Request

£436.78
  • Type: Toothed belt axis
  • Design: Electromechanical linear axis with toothed belt
  • Effective diameter of drive pinion: 18.46 mm
  • Working stroke: 100 mm
  • Size: 35
  • Toothed-belt stretch: 0.094%
  • Toothed-belt pitch: 2 mm
  • Max. acceleration: 50 m/s^2
  • Max. speed: 3 m/s
  • Repetition accuracy: ±0.1 mm

Read more

  • Max. drive torque: 0.46 Nm
  • Max. force Fy: 50 N
  • Max. force Fz: 50 N
  • Max. idle running transfer resistance: 10.8 N
  • Max. feed force Fx: 50 N
  • Frictional torque independent of load: 0.1 Nm
  • Mass moment of inertia JH per metre of stroke: 0.026 kgm^2
  • Mass moment of inertia JL per kg of working load: 0.85 kgm^2
  • Feed constant: 58
  • Reference service life: 5000 km
  • Product weight: 1720 g
  • Material profile: Wrought aluminium alloy, anodised
  • Material drive cover: Wrought aluminium alloy, anodised
  • Material pulleys: High-alloy stainless steel
  • Material slide: Wrought aluminium alloy, anodised
  • Material toothed belt clamping piece: Beryllium bronze
  • Material toothed belt: Polychloroprene with glass filament and nylon coating
  • Mounting position: Optional
  • Guide: Recirculating ball bearing guide
  • Type of motor: Stepper motor, servo motor
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Degree of protection: IP20
  • Ambient temperature: -10°C to 50°C
  • 2nd moment of area Iy: 3770 mm^4
  • 2nd moment of area Iz: 4190 mm^4
  • Additional moving mass per 10 mm stroke: 0.31 g
  • Additional weight per 10 mm stroke: 25 g
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
ELGR-TB-35-100-0H
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251511
