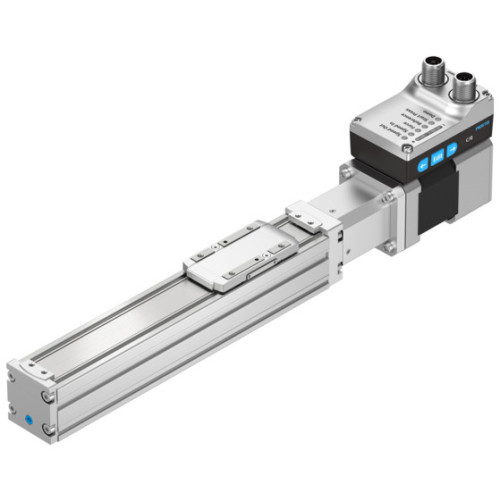

ELGS-BS-KF-32-100-8P-ST-M-H1-PLK-AA Ball screw axis unit

Manufacturer's No: ELGS-BS-KF-32-100-8P-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-BS-KF-32-100-8P-ST-M-H1-PLK-AA Ball screw axis unit

Availability On Request

£1,172.27
  • Product: ELGS-BS-KF-32-100-8P-ST-M-H1-PLK-AA Ball screw axis unit
  • Working Stroke: 100mm
  • Size: 32
  • Spindle Diameter: 8mm
  • Spindle Pitch: 8 Y13
  • Design: Electromechanical linear axis with ball screw and integrated drive
  • Motor Type: Stepper motor
  • Mounting Position: Optional
  • Guide: Recirculating ball bearing guide
  • Position Detection: Motor encoder and proximity switch

Read more

  • Rotor Position Sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature Monitoring: Switch-off for excessive temperature and integrated precise CMOS temperature sensor
  • Additional Functions: User interface and integrated end-position sensing
  • Display: LED
  • Max. Acceleration: 5 m/s²
  • Max. Speed: 0.18 m/s
  • Repetition Accuracy: ±0.015 mm
  • Duty Cycle: 100%
  • Insulation Protection Class: B
  • Nominal Voltage: 24V
  • Nominal Current: 3A
  • Parameterisation Interface: IO-Link and User interface
  • Rotor Position Transducer Resolution: 16 BIT
  • Vibration Resistance: Transport application test with severity level 1
  • Shock Resistance: Shock test with severity level 1
  • Cleanroom Class: Class 7 according to ISO 14644-1
  • Storage Temperature: -20°C to 60°C
  • Relative Air Humidity: 0 - 90%
  • Degree of Protection: IP40
  • Max. Force: 356N in both Y and Z directions
  • Max. Moment: 1.3 Nm in X direction
  • Reference Service Life: 5000 km
  • Maintenance Interval: Life-time lubrication
  • Product Weight: 1069g
  • Dynamic Deflection: 0.05% of the axis length, max. 0.5mm
  • Static Deflection: 0.1% of the axis length
  • Number of Digital Logic Outputs: 2
  • Number of Digital Logic Inputs: 2
  • IO-Link Support: Yes
  • Max. Cable Length: 15m for outputs, 15m for inputs, 20m with IO-Link operation
  • Switching Logic: PNP (positive switching)
  • Material: Painted die-cast aluminum, anodized wrought aluminum alloy, high-alloy stainless steel, steel


Product

Manufacturer Material ID -
ELGS-BS-KF-32-100-8P-ST-M-H1-PLK-AA
Net Weight -
1.12kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
