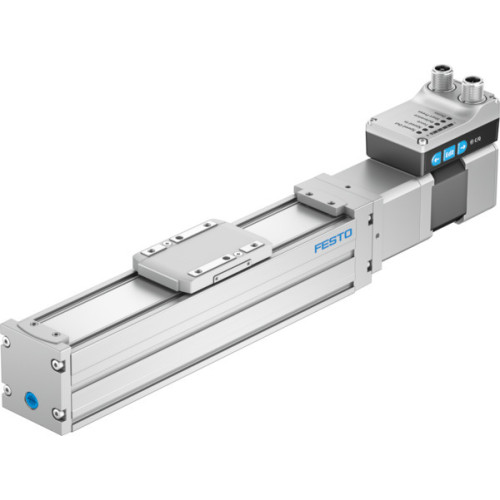

ELGS-BS-KF-45-500-10P-ST-M-H1-PLK-AA Ball screw axis unit

Manufacturer's No: ELGS-BS-KF-45-500-10P-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-BS-KF-45-500-10P-ST-M-H1-PLK-AA Ball screw axis unit

Availability On Request

£1,219.42
  • ELGS-BS-KF-45-500-10P-ST-M-H1-PLK-AA Ball screw axis unit
  • Working stroke: 500 mm
  • Size: 45
  • Spindle diameter: 10 mm
  • Spindle pitch: 10 Y13
  • Design: Electromechanical linear axis with ball screw and integrated drive
  • Motor type: Stepper motor
  • Guide: Recirculating ball bearing guide
  • Position detection: Motor encoder and proximity switch
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle

Read more

  • Max. acceleration: 5 m/s²
  • Max. speed: 0.25 m/s
  • Repetition accuracy: ±0.015 mm
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED
  • Ready status indication: LED
  • Nominal voltage: 24 V DC, Nominal current: 3 A
  • Parameterisation interface: IO-Link and user interface
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 90%
  • Degree of protection: IP40, Protection class: III
  • Max. force: Fy 880 N, Fz 880 N, Fy total axis 300 N, Fz total axis 600 N
  • Max. moment: Mx 5.5 Nm, My 4.7 Nm, Mz 4.7 Nm
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Product weight: 3154 g
  • Max. cable length: 15 m for outputs, 15 m for inputs, 20 m with IO-Link® operation
  • Logic interface: Plug type with M12x1, A-coded connection technology
  • Material: End cap - Painted die-cast aluminium, Profile - Anodised wrought aluminium alloy, Cover tape - High-alloy stainless steel, Drive cover - Painted die-cast aluminium, Guide slide and rail - Steel, Slide - Die-cast aluminium, Spindle nut and spindle - Steel


Product

Manufacturer Material ID -
ELGS-BS-KF-45-500-10P-ST-M-H1-PLK-AA
Net Weight -
2.80kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
Festo

Availability On Request

£1,219.42
