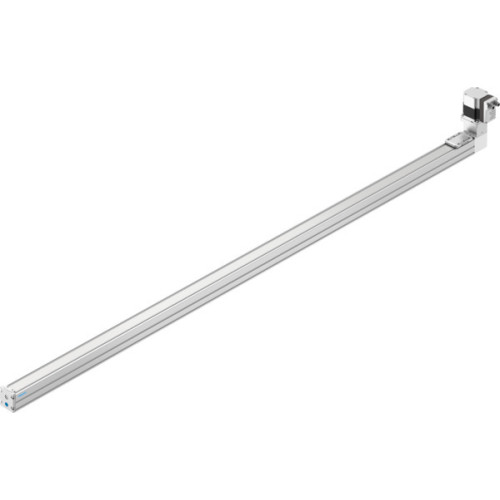

ELGS-TB-KF-45-1500-ST-M-H1-PLK-AA Toothed belt axis unit

Manufacturer's No: ELGS-TB-KF-45-1500-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-TB-KF-45-1500-ST-M-H1-PLK-AA Toothed belt axis unit

Availability On Request

£1,267.91
  • Toothed belt axis unit ELGS-TB-KF-45-1500-ST-M-H1-PLK-AA
  • Effective diameter of drive pinion: 19.1 mm
  • Working stroke: 1500 mm
  • Size: 45
  • Toothed-belt stretch: 0.187%
  • Toothed-belt pitch: 2 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder, proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED, ready status indication: LED
  • Max. acceleration: 6 m/s², max. speed: 1.2 m/s
  • Repetition accuracy: ±0.1 mm
  • Features of digital logic outputs: Configurable, not galvanically isolated
  • Duty cycle: 100%, insulation protection class: B
  • Max. current digital logic outputs: 100 mA, max. current consumption: 5.3 A
  • Nominal voltage DC: 24 V, parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 BIT
  • Permissible voltage fluctuations: ±15%
  • Power supply: Plugs, M12x1, T-coded according to EN 61076-2-111, 4 pins/wires, connection pattern: 995989
  • Approvals: RCM trademark, KC mark: KC-EMV, CE mark, UKCA marking
  • Vibration resistance: Transport application test, shock resistance: Shock test
  • LABS (PWIS) conformity: VDMA24364 zone III, cleanroom class: Class 7
  • Storage temperature: -20°C to 60°C, relative air humidity: 0-90%
  • Degree of protection: IP40, protection class: III, ambient temperature: 0°C to 50°C
  • Max. forces and moments specified for different axes
  • Reference service life: 5000 km, maintenance interval: Life-time lubrication
  • Various technical details related to logic inputs and outputs, IO-Link specifications
  • Max. cable lengths for inputs and outputs, switching logic, connection technology
  • Material details: Painted die-cast aluminum, anodized wrought aluminum alloy, stainless steel strip, tempered steel, high-alloy stainless steel, polychloroprene with glass fiber
