2CSG252120R1202

ELR72 Residual Current Monitor

Manufacturer's No: ELR72     Manufacturer: ABB

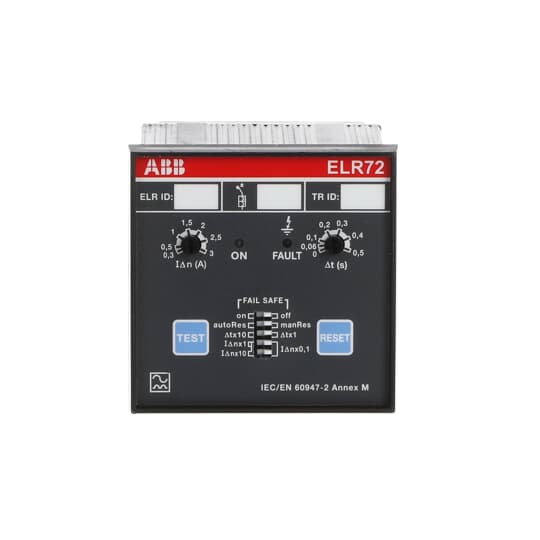

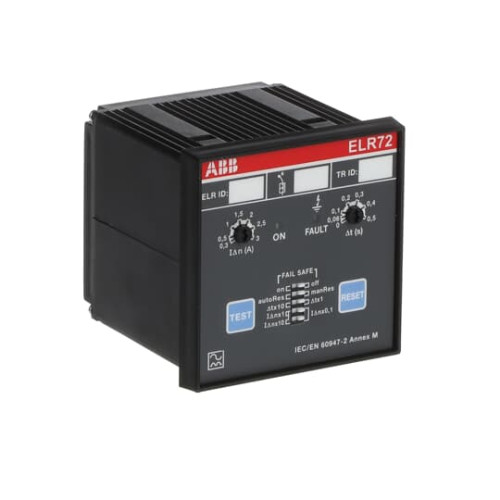

ELR72 Residual Current Monitor

Availability On Request

£467.12
  • ELR72 Residual Current Monitor
    • Monitors and protects low voltage distribution network
    • Uses toroidal transformer for monitoring
    • Compliant with protection standard 60947-2 Annex M
    • Works in combination with MCBs and MCCBs
    • Offers cumulative operational time guarantee by the manufacturer


Product

Manufacturer Material ID -
ELR72
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Rated frequency -
50 Hertz
Type of electric connection -
Screw connection
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
110 Volt
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1
Rated voltage -
110 Volt
Depth -
88 Millimetre
Function -
For mixed system
Height -
72 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
5 Second
Min. adjustable delay-on energization time -
0 Second
Response value amperage 1 -
30 Milliampere
Response value amperage 2 -
30000 Milliampere
Width -
72 Millimetre
ABB

Availability On Request

£467.12
