2CSG452130R1202

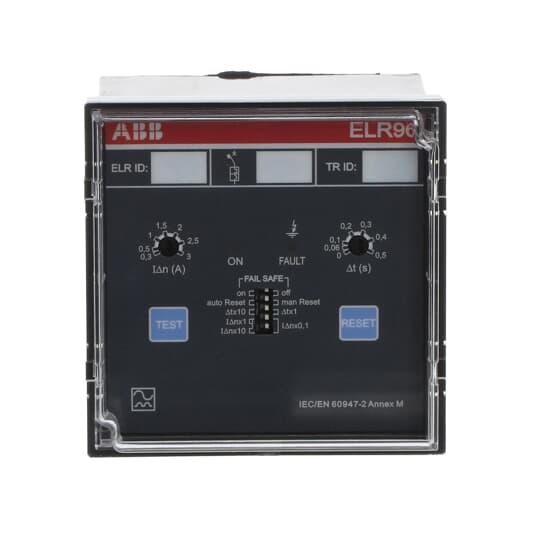

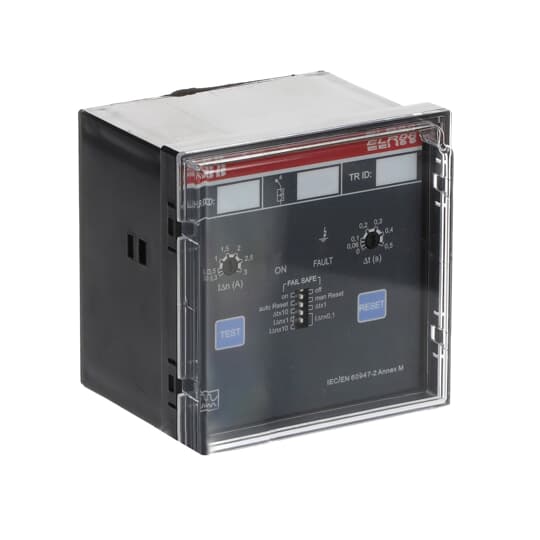

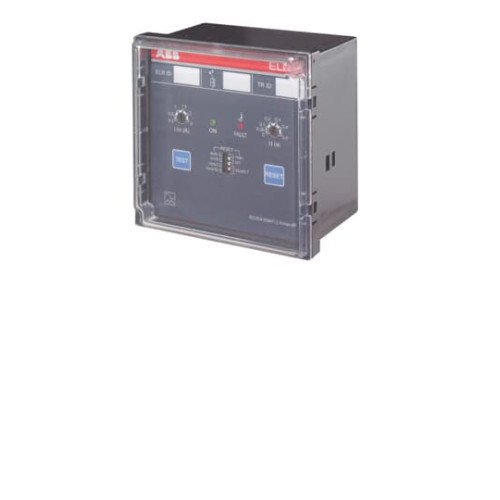

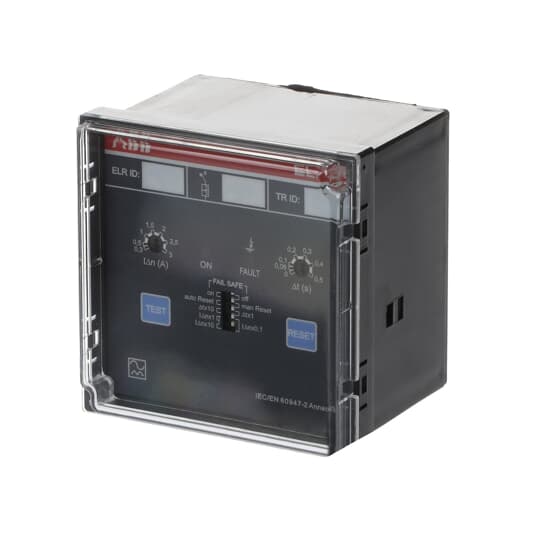

ELR96V24 Residual Current Monitor

Manufacturer's No: ELR96V24     Manufacturer: ABB
ELR96V24 Residual Current Monitor

Availability On Request

£441.77
  • Model: ELR96V24 Residual Current Monitor
  • Function: Monitors and protects low voltage distribution network
  • Features: Uses toroidal transformer for monitoring
  • Protection: Works in combination with MCBs and MCCBs
  • Compliance: Meets protection standard 60947-2 Annex M
  • Operational Time: Manufacturer guarantees cumulative operational time for residual current relay, shunt-trip, and circuit breaker


Product

Manufacturer Material ID -
ELR96V24
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Rated frequency -
50 Hertz
Type of electric connection -
Screw connection
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1
Rated voltage -
24 Volt
Depth -
78 Millimetre
Function -
For mixed system
Height -
96 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
5 Second
Min. adjustable delay-on energization time -
0 Second
Response value amperage 1 -
30 Milliampere
Response value amperage 2 -
30000 Milliampere
Width -
96 Millimetre
ABB

Availability On Request

£441.77
