8085342

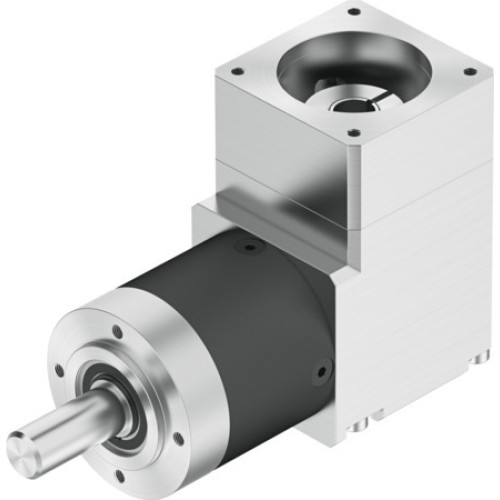

EMGA-40-A-G3-40P Gear unit

Manufacturer's No: EMGA-40-A-G3-40P     Manufacturer: Festo
EMGA-40-A-G3-40P Gear unit

Availability On Request

£587.50
  • Gear unit: EMGA-40-A-G3-40P
  • Gear unit flange size: 40 mm
  • Motor flange size: 40 mm
  • Torsional backlash: 0.35 degrees
  • Type of gear unit: Right-angle
  • Gear unit ratio: 3:1
  • Max. drive speed: 18,000 RPM
  • Operating temperature: -25°C to 90°C
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Degree of protection: IP54

Read more

  • Continuous output torque: 4.5 Nm
  • Max. output torque: 7 Nm
  • Max. efficiency: 95%
  • Torsional rigidity: 0.8 Y16
  • Mass moment of inertia: 0.049 kgm²
  • Product weight: 500 g
  • Gear unit interface, output shaft: 40G
  • Gear unit interface, drive shaft: 40P
  • Materials: RoHS-compliant


Product

Manufacturer Material ID -
EMGA-40-A-G3-40P
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
84834090
Country of Origin -
DE
UNSPSC -
31261504
