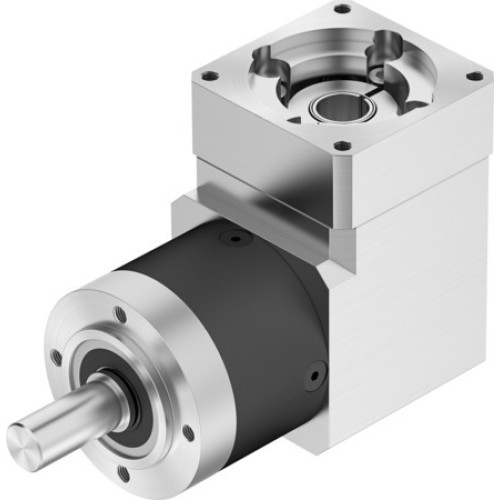

EMGA-60-A-G5-60P Gear unit

Manufacturer's No: EMGA-60-A-G5-60P     Manufacturer: Festo
EMGA-60-A-G5-60P Gear unit

Availability On Request

£614.82
  • Gear unit: EMGA-60-A-G5-60P
  • Gear unit flange size: 60 mm
  • Motor flange size: 60 mm
  • Type of gear unit: Right-angle
  • Gear unit ratio: 5:1
  • Max. drive speed: 13000 RPM
  • Operating temperature: -25°C to 90°C
  • Continuous output torque: 24 Nm
  • Max. output torque: 38 Nm
  • Max. efficiency: 95%

Read more

  • Torsional rigidity: 1.9 Y16
  • Mass moment of inertia: 0.257 kgm²
  • Degree of protection: IP54
  • Product weight: 1700 g
  • Torsional backlash: 0.27°
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Gear unit interface:
    • Output shaft: 60G
    • Drive shaft: 60P
  • Materials: RoHS-compliant


Product

Manufacturer Material ID -
EMGA-60-A-G5-60P
Net Weight -
1.77kg

Additional Product Information

Commodity Code -
84834090
Country of Origin -
DE
UNSPSC -
31261504
