EMGA-60-P-G5-SST-57 Gear unit

Manufacturer's No: EMGA-60-P-G5-SST-57     Manufacturer: Festo

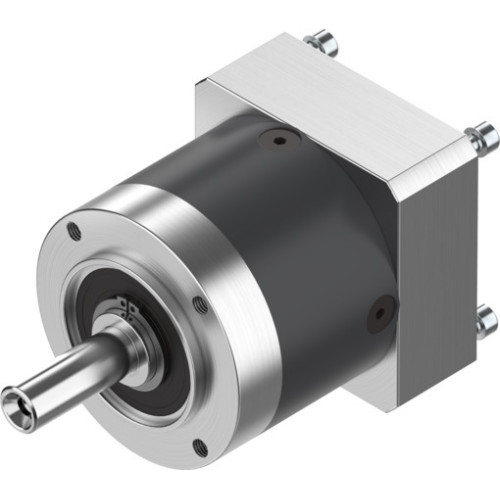

EMGA-60-P-G5-SST-57 Gear unit

Availability Back Order

£550.17
  • Gear unit model: EMGA-60-P-G5-SST-57
  • Suitable for stepper motors
  • Gear unit flange size: 60 mm
  • Motor flange size: 57 mm
  • Torsional backlash: 0.17 degrees
  • Type of gear unit: Planetary gear
  • Gear unit ratio: 5:1
  • Max. drive speed: 13000 RPM
  • Operating temperature: -25 to 90 degrees Celsius
  • LABS (PWIS) conformity: VDMA24364-B2-L

Read more

  • Degree of protection: IP54
  • Continuous output torque: 22 Nm
  • Mass moment of inertia: 0.078 kg/cm^2
  • Max. output torque: 35.2 Nm
  • Max. efficiency: 98%
  • Torsional rigidity: 2.3 Nm/arcmin
  • Product weight: 900 g
  • Gear unit interface, output shaft: 60G
  • Gear unit interface, drive shaft: 57A
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EMGA-60-P-G5-SST-57
Net Weight -
0.98kg

Additional Product Information

Commodity Code -
84834090
Country of Origin -
DE
UNSPSC -
31261504
