8085346

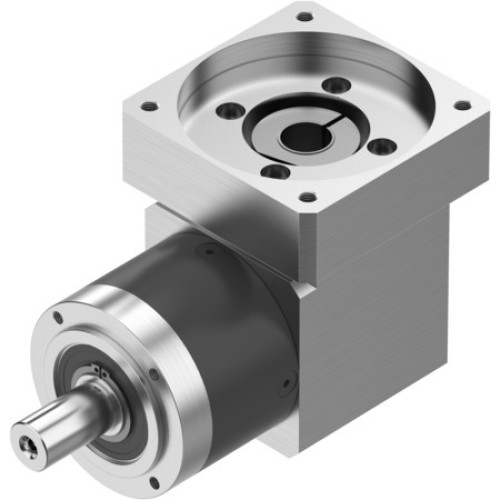

EMGA-80-A-G3-80P Gear unit

Manufacturer's No: EMGA-80-A-G3-80P     Manufacturer: Festo
EMGA-80-A-G3-80P Gear unit

Availability On Request

£655.81
  • Gear unit: EMGA-80-A-G3-80P
  • Gear unit flange size: 80 mm
  • Motor flange size: 80 mm
  • Torsional backlash: 0.22 degrees
  • Type of gear unit: Right-angle
  • Gear unit ratio: 3:1
  • Max. drive speed: 7000 RPM
  • Operating temperature: -25°C to 90°C
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Degree of protection: IP54

Read more

  • Continuous output torque: 40 Nm
  • Max. output torque: 64 Nm
  • Max. efficiency: 95%
  • Torsional rigidity: 5 Y16
  • Mass moment of inertia: 1.409 kgm²
  • Product weight: 4300 g
  • Gear unit interface, output shaft: 80G
  • Gear unit interface, drive shaft: 80P
  • Materials: RoHS-compliant


Product

Manufacturer Material ID -
EMGA-80-A-G3-80P
Net Weight -
3.92kg

Additional Product Information

Commodity Code -
84834090
Country of Origin -
DE
UNSPSC -
31261504
Festo

Availability On Request

£655.81
