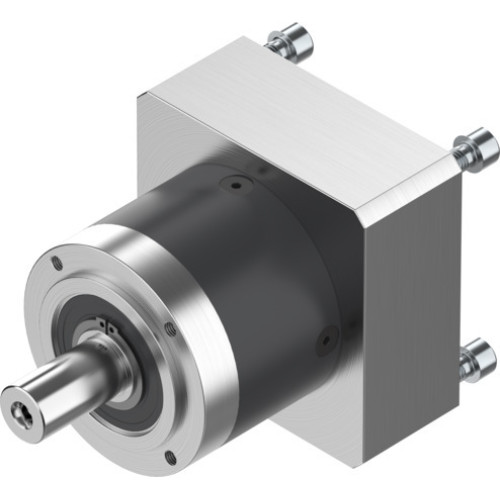

EMGA-80-P-G3-SAS-100 Gear unit

Manufacturer's No: EMGA-80-P-G3-SAS-100     Manufacturer: Festo
EMGA-80-P-G3-SAS-100 Gear unit

Availability Back Order

£540.47
  • Gear unit model: EMGA-80-P-G3-SAS-100
  • Suitable for servo motors
  • Gear unit flange size: 80 mm
  • Motor flange size: 100 mm
  • Torsional backlash: 0.12 degrees
  • Type of gear unit: Planetary gear
  • Gear unit ratio: 3:1
  • Max. drive speed: 7000 RPM
  • Operating temperature: -25°C to 90°C
  • LABS (PWIS) conformity: VDMA24364-B2-L

Read more

  • Degree of protection: IP54
  • Continuous output torque: 85 Nm
  • Mass moment of inertia: 0.77 kg·cm²
  • Max. output torque: 136 Nm
  • Max. efficiency: 98%
  • Torsional rigidity: 6 Nm/arcmin
  • Product weight: 2100 g
  • Gear unit interface, output shaft: 80G
  • Gear unit interface, drive shaft: 100A
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EMGA-80-P-G3-SAS-100
Net Weight -
2.64kg

Additional Product Information

Commodity Code -
84834090
Country of Origin -
DE
UNSPSC -
31261504
