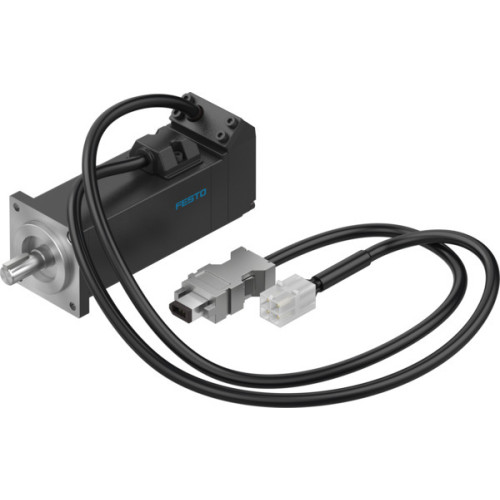

EMMB-AS-40-01-K-S30M Servo motor

Manufacturer's No: EMMB-AS-40-01-K-S30M     Manufacturer: Festo
EMMB-AS-40-01-K-S30M Servo motor

Availability On Request

£536.02
  • Servo motor model: EMMB-AS-40-01-K-S30M
  • Ambient temperature: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 meters (derating of -1.0% per 100 meters above 1000 meters)
  • Storage temperature: -20°C to 55°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Temperature class: F
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Temperature monitoring: Digital transmission via Nikon A format

Read more

  • Motor types: IM B5, IM V1, IM V3
  • Degree of protection: IP65 (IP40 for motor shaft without seal, IP54 for motor shaft with seal)
  • Concentricity, coaxiality, axial runout: N to DIN SPEC 42955
  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Featherkey shaft type: DIN 6885, A 3 x 3 x 12
  • Electrical connection: Plugs, 6 cores, Connection pattern RE, 995792
  • Pollution degree: 2, RoHS-compliant
  • Corrosion resistance class: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Vibration resistance: Severity level 2 to FN 942017-4, EN 60068-2-6
  • Shock resistance: Severity level 2 to FN 942017-5, EN 60068-2-27
  • Approvals: c UL us - Recognized (OL), CE mark (EU EMC, Low Voltage, RoHS Directives), UKCA marking
  • Certificate issuing authority: UL E342973
  • Nominal operating voltage: 300 V
  • Type of winding switch: Star inside
  • Number of pole pairs: 5
  • Torque: Standstill 0.352 Nm, Nominal 0.32 Nm, Peak 0.96 Nm
  • Speed: Nominal 3000 RPM, Max. rotational 6000 RPM, Max. mechanical 10000 RPM
  • Power rating: 100 W
  • Current: Continuous stall 1.43 A, Nominal 1.3 A, Peak 3.9 A
  • Motor constant: 0.268 Nm/A
  • Voltage constant: 16.2 V/phase
  • Winding resistance: 7.9 Ohms, Winding inductance: 10.5 mH
  • Electric time constant: 1.33 ms
  • Measuring flange: 175 x 200 x 10 mm, aluminium
  • Mass moment of inertia: 0.059 kgm²
  • Product weight: 570 g
  • Permissible axial shaft load: 60 N, Permissible radial shaft load: 120 N
  • Rotor position sensor: Absolute multi-turn encoder, MAR-MX50AHN00, 65536 detectable revolutions
  • Rotor position encoder interface: Nikon A-format, Optical measuring principle
  • Rotor position sensor DC operating voltage: 5 V (range: 4.75 V to 5.25 V)
  • Position values per revolution: 1048576, Resolution: 20 BIT
  • System accuracy of angle measurement: -120 to 120 ARS


Product

Manufacturer Material ID -
EMMB-AS-40-01-K-S30M
Net Weight -
0.79kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
UNSPSC -
30102206
