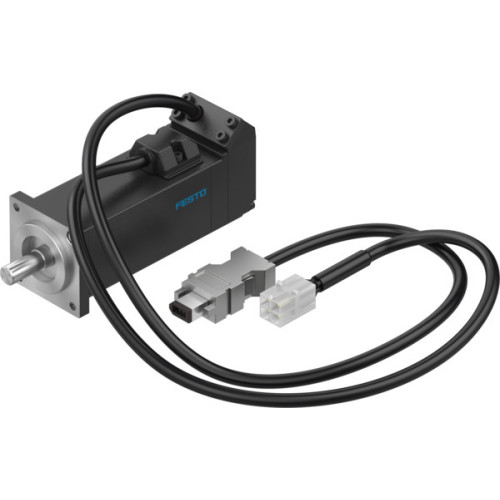

EMMB-AS-40-01-S30M Servo motor

Manufacturer's No: EMMB-AS-40-01-S30M     Manufacturer: Festo
EMMB-AS-40-01-S30M Servo motor

Availability On Request

£529.05
  • Servo motor model: EMMB-AS-40-01-S30M
  • Ambient temperature range: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 meters (derating of -1.0% per 100 meters above 1000 meters)
  • Storage temperature range: -20°C to 55°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Temperature monitoring: Digital transmission via Nikon A format
  • Motor types: IM B5, IM V1, IM V3

Read more

  • Degree of protection: IP65 (IP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with seal)
  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Plugs, 6 cores, Connection pattern RE
  • Pollution degree: 2
  • RoHS-compliant materials
  • Vibration resistance: Severity level 2
  • Shock resistance: Severity level 2
  • Certifications: c UL us, CE mark, UKCA marking
  • Nominal operating voltage: 300V DC
  • Standstill torque: 0.352 Nm
  • Nominal torque: 0.32 Nm
  • Peak torque: 0.96 Nm
  • Nominal rotary speed: 3000 RPM
  • Max. rotational speed: 6000 RPM
  • Nominal power rating: 100W
  • Continuous stall current: 1.43A
  • Nominal motor current: 1.3A
  • Peak current: 3.9A
  • Motor constant: 0.268 Nm/A
  • Phase-phase winding resistance: 7.9 Ohms
  • Phase-phase winding inductance: 10.5 mH
  • Electric time constant: 1.33 ms
  • Measuring flange dimensions: 175 x 200 x 10 mm, aluminium
  • Total mass moment of inertia of output: 0.059 kgm^2
  • Product weight: 570g
  • Permissible axial shaft load: 60N
  • Permissible radial shaft load: 120N
  • Rotor position sensor: Absolute multi-turn encoder, MAR-MX50AHN00
  • Absolute detectable revolutions: 65536
  • Rotor position encoder interface: Nikon A-format
  • Optical measuring principle
  • DC operating voltage: 5V
  • Position values per revolution: 1048576
  • Rotor position transducer resolution: 20 bits
  • System accuracy of angle measurement: -120 to 120 ARS


Product

Manufacturer Material ID -
EMMB-AS-40-01-S30M
Net Weight -
0.78kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£529.05
