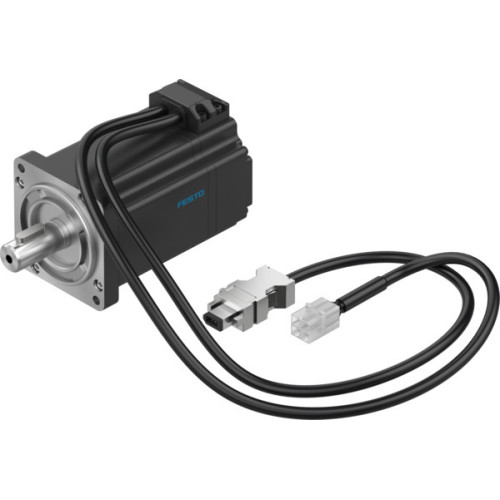

EMMB-AS-60-02-K-S30M Servo motor

Manufacturer's No: EMMB-AS-60-02-K-S30M     Manufacturer: Festo
EMMB-AS-60-02-K-S30M Servo motor

Availability On Request

£542.98
  • Servo motor model: EMMB-AS-60-02-K-S30M
  • Ambient temperature range: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 meters (derating of -1.0% per 100 meters above 1000 meters)
  • Storage temperature range: -20°C to 55°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Temperature class: F
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Motor types: IM B5, IM V1, IM V3

Read more

  • Degree of protection: IP65 (IP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal)
  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Plugs, 6 connections/cores, Connection pattern RE, 995792
  • Pollution degree: 2
  • RoHS-compliant materials
  • Corrosion resistance class: CRC 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Approvals: c UL us - Recognized (OL), CE mark (EU EMC Directive, EU Low Voltage Directive, EU RoHS Directive), UKCA marking (UK instructions for EMC, UK RoHS instructions, UK regulations for electrical equipment)
  • Certificate issuing authority: UL E342973
  • Nominal operating voltage DC: 300 V
  • Type of winding switch: Star inside
  • Number of pole pairs: 3
  • Torque: Standstill 0.7 Nm, Nominal 0.64 Nm, Peak 1.92 Nm
  • Speed: Nominal 3000 RPM, Max. rotational 6000 RPM, Max. mechanical 10000 RPM
  • Power rating: 200 W
  • Current: Continuous stall 1.5 A, Nominal 1.4 A, Peak 4.2 A
  • Motor constant: 0.48 Nm/A
  • Voltage constant: 29 V/phase
  • Winding resistance: 11.2 Ohm
  • Winding inductance: 20.9 mH
  • Electric time constant: 1.87 ms
  • Measuring flange: 255 x 255 x 8 mm, aluminium
  • Mass moment of inertia: 0.214 kgm^2
  • Product weight: 1100 g
  • Permissible axial shaft load: 90 N
  • Permissible radial shaft load: 180 N
  • Rotor position sensor: Absolute multi-turn encoder, MAR-MX50AHN00, 65536 detectable revolutions
  • Rotor position encoder interface: Nikon A-format
  • Rotor position sensor resolution: 20 BIT
  • System accuracy of angle measurement: -120 to 120 ARS


Product

Manufacturer Material ID -
EMMB-AS-60-02-K-S30M
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
UNSPSC -
30102206
