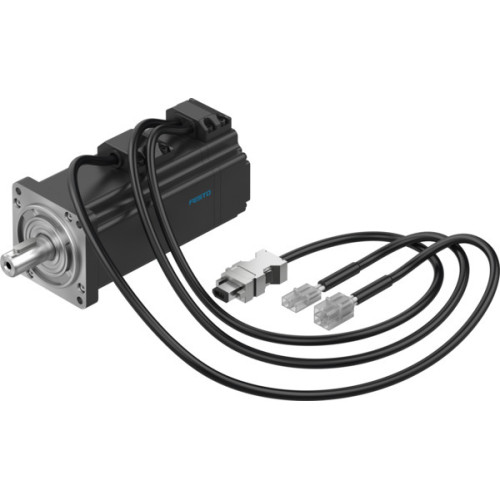

EMMB-AS-60-02-K-S30SB Servo motor

Manufacturer's No: EMMB-AS-60-02-K-S30SB     Manufacturer: Festo
EMMB-AS-60-02-K-S30SB Servo motor

Availability On Request

£563.86
  • Servo motor model: EMMB-AS-60-02-K-S30SB
  • Ambient temperature: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 m (derating of -1.0% per 100 m above 1000 m)
  • Storage temperature: -20°C to 55°C
  • Relative air humidity: 0 - 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Motor types: IM B5, IM V1, IM V3
  • Degree of protection: IP65 (IP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal)

Read more

  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Plugs, 6 cores, Connection pattern RE, 995792
  • Pollution degree: 2
  • Materials: RoHS-compliant, CRC class 0
  • Vibration resistance: Severity level 2
  • Shock resistance: Severity level 2
  • Certifications: c UL us, CE mark, UKCA marking, UL E342973
  • Nominal operating voltage: 300 V
  • Standstill torque: 0.7 Nm
  • Nominal torque: 0.64 Nm
  • Peak torque: 1.92 Nm
  • Nominal power rating: 200 W
  • Continuous stall current: 1.5 A
  • Nominal motor current: 1.4 A
  • Peak current: 4.2 A
  • Motor constant: 0.48 Nm/A
  • Voltage constant: 29 V/phase
  • Phase-phase winding resistance: 11.2 Ohm
  • Phase-phase winding inductance: 20.9 mH
  • Electric time constant: 1.87 ms
  • Measuring flange: 255 x 255 x 8 mm, aluminium
  • Total mass moment of inertia: 0.234 kgcm^2
  • Product weight: 1400 g
  • Permissible axial shaft load: 90 N
  • Permissible radial shaft load: 180 N
  • Rotor position sensor: Absolute single-turn encoder, SAR-ML50AJC00
  • Rotor position encoder interface: Nikon A-format
  • Rotor position sensor resolution: 20 bit
  • Brake holding torque: 1.3 Nm
  • Operating voltage for brake: 24 V
  • Power consumption for brake: 7.2 W


Product

Manufacturer Material ID -
EMMB-AS-60-02-K-S30SB
Net Weight -
1.65kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
DE
UNSPSC -
26101115
