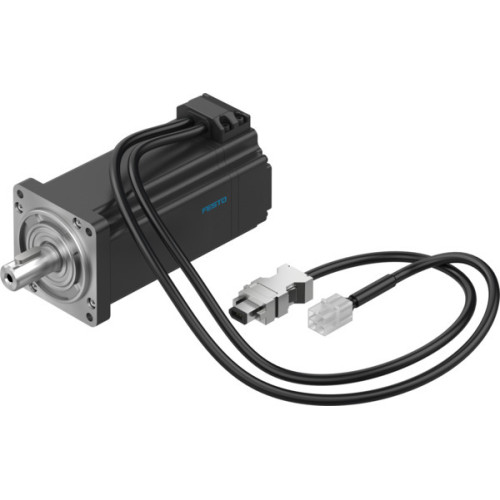

EMMB-AS-60-04-K-S30S Servo motor

Manufacturer's No: EMMB-AS-60-04-K-S30S     Manufacturer: Festo
EMMB-AS-60-04-K-S30S Servo motor

Availability Back Order

£424.64
  • Servo motor model: EMMB-AS-60-04-K-S30S
  • Ambient temperature range: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 meters (derating of -1.0% per 100 meters above 1000 meters)
  • Storage temperature range: -20°C to 55°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Temperature class: F
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Temperature monitoring: Digital transmission via Nikon A format

Read more

  • Motor types: IM B5, IM V1, IM V3
  • Degree of protection: IP65 (IP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal)
  • Concentricity, coaxiality, axial runout: N
  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Featherkey shaft type: DIN 6885, A 5 x 5 x 16
  • Electrical connection: Plugs, connector system RE, 6 connections/cores
  • Pollution degree: 2
  • RoHS-compliant materials
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Vibration resistance: Transport application test severity level 2
  • Shock resistance: Shock test severity level 2
  • Certifications: c UL us - Recognized (OL), CE mark, UKCA marking
  • Nominal operating voltage DC: 300 V
  • Winding switch type: Star inside
  • Number of pole pairs: 3
  • Torque: Standstill 1.4 NM, Nominal 1.27 NM, Peak 3.81 NM
  • Speed: Nominal 3000 RPM, Max. rotational 6000 RPM, Max. mechanical 10000 RPM
  • Power rating: 400 W
  • Current: Continuous stall 2.6 A, Nominal 2.4 A, Peak 7.2 A
  • Motor constants: 0.562 NMA, 34 YUR, 5.8 OHM, 11.5 C14
  • Electric time constant: 1.98 MS
  • Measuring flange: 255 x 255 x 8 mm, aluminium
  • Inertia of output: 0.405 KGC
  • Product weight: 1600 g
  • Permissible axial shaft load: 90 N, radial shaft load: 180 N
  • Rotor position sensor: Absolute single-turn encoder, SAR-ML50AJC00, 1 revolution detectable
  • Rotor position encoder interface: Nikon A-format
  • Rotor position sensor details: Optical, 5 V DC operating voltage, 1048576 position values per revolution, 20 BIT resolution, system accuracy of angle measurement -120 to 120 ARS

Accessories



Product

Manufacturer Material ID -
EMMB-AS-60-04-K-S30S
Net Weight -
1.69kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
UNSPSC -
26101115
