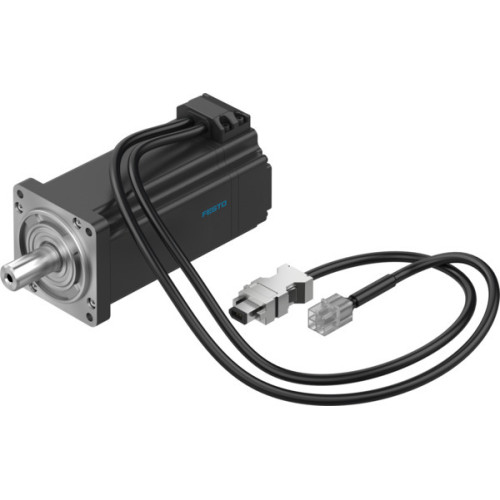

EMMB-AS-60-04-S30M Servo motor

Manufacturer's No: EMMB-AS-60-04-S30M     Manufacturer: Festo
EMMB-AS-60-04-S30M Servo motor

Availability On Request

£556.89
  • Servo motor model: EMMB-AS-60-04-S30M
  • Ambient temperature range: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 m (derating of -1.0% per 100 m above 1000 m)
  • Storage temperature range: -20°C to 55°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Temperature class: F
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Motor types: IM B5, IM V1, IM V3

Read more

  • Degree of protection: IP65 (IP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal)
  • Concentricity, coaxiality, axial runout: N
  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Plugs, 6 cores, Connection pattern RE, 995792
  • Pollution degree: 2
  • RoHS-compliant materials
  • Corrosion resistance class: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Vibration resistance: Severity level 2
  • Shock resistance: Severity level 2
  • Certifications: c UL us - Recognized (OL), CE mark, UKCA marking
  • Nominal operating voltage DC: 300 V
  • Winding switch type: Star inside
  • Number of pole pairs: 3
  • Torque: Standstill 1.4 Nm, Nominal 1.27 Nm, Peak 3.81 Nm
  • Speed: Nominal 3000 RPM, Max. rotational 6000 RPM, Max. mechanical 10000 RPM
  • Power rating: 400 W
  • Current: Continuous stall 2.6 A, Nominal 2.4 A, Peak 7.2 A
  • Motor constant: 0.562 Nm/A
  • Voltage constant: 34 V/phase
  • Winding resistance: 5.8 ohms
  • Winding inductance: 11.5 mH
  • Electric time constant: 1.98 ms
  • Measuring flange: 255 x 255 x 8 mm, aluminium
  • Mass moment of inertia: 0.405 kgm²
  • Product weight: 1600 g
  • Axial shaft load: 90 N, Radial shaft load: 180 N
  • Rotor position sensor: Absolute multi-turn encoder, MAR-MX50AHN00
  • Absolute detectable revolutions: 65536
  • Encoder interface: Nikon A-format
  • Encoder measuring principle: Optical
  • DC operating voltage: 5 V (range: 4.75 V to 5.25 V)
  • Position values per revolution: 1048576
  • Transducer resolution: 20 bit
  • System accuracy of angle measurement: -120 to 120 ARS


Product

Manufacturer Material ID -
EMMB-AS-60-04-S30M
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£556.89
