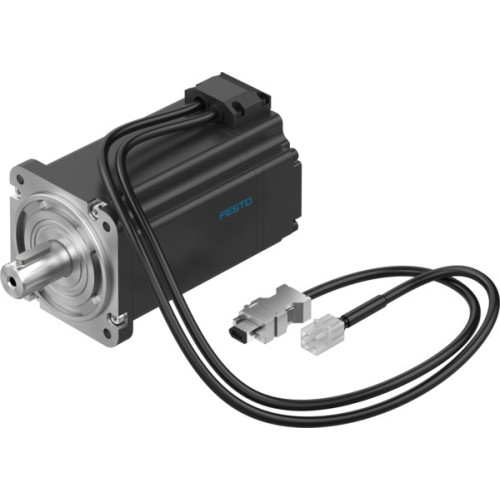

EMMB-AS-80-07-K-S30M Servo motor

Manufacturer's No: EMMB-AS-80-07-K-S30M     Manufacturer: Festo
EMMB-AS-80-07-K-S30M Servo motor

Availability On Request

£598.67
  • Servo motor model: EMMB-AS-80-07-K-S30M
  • Ambient temperature: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000m (derating of -1.0% per 100m above 1000m)
  • Storage temperature: -20°C to 55°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Temperature class: F
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Motor types: IM B5, IM V1, IM V3

Read more

  • Degree of protection: IP65 (IP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal)
  • Concentricity, coaxiality, axial runout: N
  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Featherkey shaft type: DIN 6885, A 6 x 6 x 22
  • Electrical connection: Plugs, 6 connections/cores, Connection pattern RE, 995792
  • Pollution degree: 2, RoHS-compliant
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Approvals: c UL us - Recognized (OL), CE mark (EU EMC Directive, EU Low Voltage Directive, EU RoHS Directive), UKCA marking (UK instructions for EMC, UK RoHS instructions, UK regulations for electrical equipment)
  • Certificate issuing authority: UL E342973
  • Nominal operating voltage DC: 300V
  • Type of winding switch: Star inside
  • Number of pole pairs: 3
  • Torque: Standstill 2.63Nm, Nominal 2.39Nm, Peak 7.17Nm
  • Speed: Nominal 3000PMI, Max. rotational 5000PMI, Max. mechanical 10000PMI
  • Power rating: 750W
  • Current: Continuous stall 4.2A, Nominal 3.8A, Peak 11.4A
  • Motor constant: 0.662 NMA
  • Voltage constant: 40 YUR
  • Phase-phase winding resistance: 2.1 OHM
  • Phase-phase winding inductance: 10.5 C14
  • Electric time constant: 5MS
  • Measuring flange: 255 x 255 x 8mm, aluminium
  • Inertia of output: 0.942 KGC
  • Product weight: 2800g
  • Permissible axial shaft load: 167.5N, Permissible radial shaft load: 335N
  • Rotor position sensor: Absolute multi-turn encoder, MAR-MX50AHN00, 65536 detectable revolutions
  • Rotor position encoder interface: Nikon A-format, Optical measuring principle
  • Rotor position sensor DC operating voltage: 5V (range: 4.75V to 5.25V)
  • Position values per revolution: 1048576, Resolution: 20 BIT
  • System accuracy of angle measurement: -120 ARS to 120 ARS
  • Energy efficiency: ENEFF (CN) / Class 2


Product

Manufacturer Material ID -
EMMB-AS-80-07-K-S30M
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
UNSPSC -
30102206
