8097194

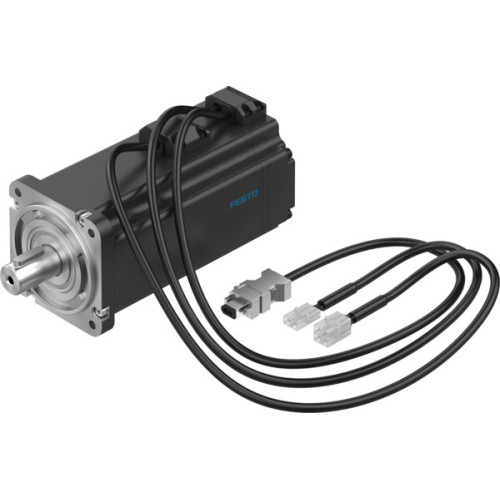

EMMB-AS-80-07-K-S30MB Servo motor

Manufacturer's No: EMMB-AS-80-07-K-S30MB     Manufacturer: Festo
EMMB-AS-80-07-K-S30MB Servo motor

Availability On Request

£884.08
  • Servo motor model: EMMB-AS-80-07-K-S30MB
  • Ambient temperature: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000m (derating of -1.0% per 100m above 1000m)
  • Storage temperature: -20°C to 55°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Motor types: IM B5, IM V1, IM V3
  • Degree of protection: IP65 (IP40 for motor shaft without seal, IP54 for motor shaft with seal)

Read more

  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Plugs, 6 cores, Connection pattern RE
  • Pollution degree: 2
  • RoHS-compliant materials
  • Vibration resistance: Severity level 2
  • Shock resistance: Severity level 2
  • Certifications: c UL us, CE mark, UKCA marking
  • Nominal operating voltage: 300V
  • Standstill torque: 2.63 Nm
  • Nominal power rating: 750W
  • Peak torque: 7.17 Nm
  • Nominal speed: 3000 RPM
  • Max. speed: 5000 RPM
  • Product weight: 3400g
  • Rotor position sensor: Absolute multi-turn encoder, 65536 detectable revolutions
  • Brake holding torque: 3.2 Nm, 24V DC operating voltage
  • Energy efficiency: ENEFF (CN) / Class 2


Product

Manufacturer Material ID -
EMMB-AS-80-07-K-S30MB
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
UNSPSC -
30102206
