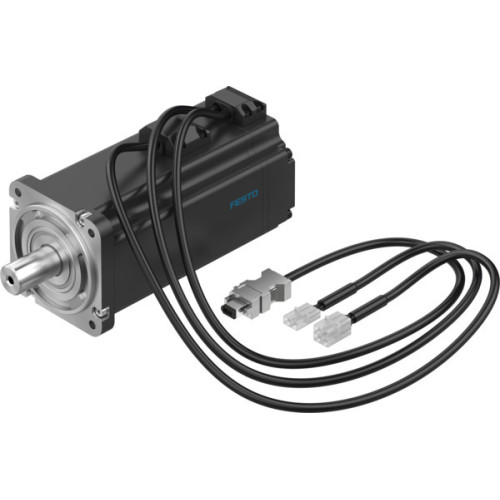

EMMB-AS-80-07-S30MB Servo motor

Manufacturer's No: EMMB-AS-80-07-S30MB     Manufacturer: Festo
EMMB-AS-80-07-S30MB Servo motor

Availability On Request

£877.13
  • Servo motor model: EMMB-AS-80-07-S30MB
  • Ambient temperature range: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 meters (derating of -1.0% per 100 meters above 1000 meters)
  • Storage temperature range: -20°C to 55°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Temperature class: F
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Temperature monitoring: Digital transmission via Nikon A format

Read more

  • Motor types: IM B5, IM V1, IM V3
  • Degree of protection: IP65 (IP40 for motor shaft without seal, IP54 for motor shaft with seal)
  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Plugs, 6 cores, Connection pattern RE
  • Pollution degree: 2, RoHS-compliant
  • Corrosion resistance class: CRC 0 (No corrosion stress)
  • Vibration resistance: Severity level 2
  • Shock resistance: Severity level 2
  • Certifications: c UL us, CE mark, UKCA marking
  • Nominal operating voltage: 300V DC
  • Winding switch type: Star inside
  • Number of pole pairs: 3
  • Torque: Standstill 2.63 NM, Nominal 2.39 NM, Peak 7.17 NM
  • Speed: Nominal 3000 RPM, Max. rotational 5000 RPM, Max. mechanical 10000 RPM
  • Power rating: 750W
  • Current: Continuous stall 4.2A, Nominal motor 3.8A, Peak 11.4A
  • Motor constants: 0.662 NMA, 40 YUR, 2.1 OHM, 10.5 C14, 5 MS
  • Measuring flange: 255 x 255 x 8 mm, aluminium
  • Inertia: 0.978 KGC
  • Weight: 3400g
  • Shaft load: Axial 167.5N, Radial 335N
  • Rotor position sensor: Absolute multi-turn encoder, MAR-MX50AHN00, 65536 detectable revolutions
  • Encoder details: Nikon A-format, Optical, 20 BIT resolution
  • Brake: Holding torque 3.2 NM, Operating voltage 24V, Power consumption 11.5W
  • Energy efficiency: ENEFF (CN) / Class 2


Product

Manufacturer Material ID -
EMMB-AS-80-07-S30MB
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£877.13
