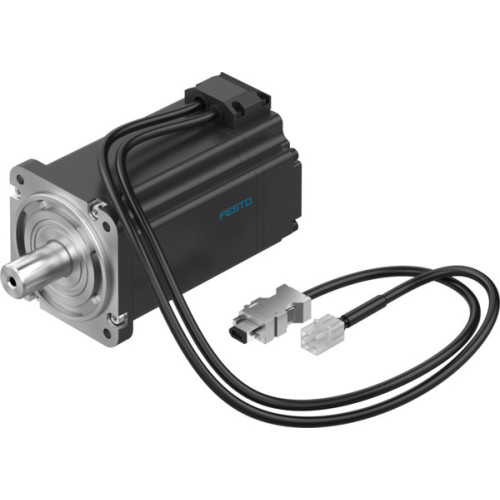

EMMB-AS-80-07-S30S Servo motor

Manufacturer's No: EMMB-AS-80-07-S30S     Manufacturer: Festo
EMMB-AS-80-07-S30S Servo motor

Availability On Request

£452.49
  • Servo motor model: EMMB-AS-80-07-S30S
  • Ambient temperature range: -15°C to 40°C (up to 60°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 meters (derating of -1.0% per 100 meters above 1000 meters)
  • Storage temperature range: -20°C to 55°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Motor types: IM B5, IM V1, IM V3
  • Degree of protection: IP65 (IP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal)

Read more

  • Balance quality: G 2.5
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Plugs, 6 cores, Connection pattern RE (995792)
  • Pollution degree: 2
  • RoHS-compliant materials
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Certifications: c UL us - Recognized (OL), CE mark (EU EMC Directive, EU Low Voltage Directive, EU RoHS Directive), UKCA marking (UK EMC instructions, UK RoHS instructions, UK regulations for electrical equipment)
  • Nominal operating voltage: 300 V DC
  • Type of winding switch: Star inside
  • Number of pole pairs: 3
  • Torque: Standstill 2.63 Nm, Nominal 2.39 Nm, Peak 7.17 Nm
  • Speed: Nominal 3000 RPM, Max. rotational 5000 RPM, Max. mechanical 10000 RPM
  • Power rating: 750 W
  • Current: Continuous stall 4.2 A, Nominal 3.8 A, Peak 11.4 A
  • Motor constant: 0.662 Nm/A
  • Voltage constant: 40 V/phase-to-phase
  • Winding resistance: 2.1 Ohm
  • Winding inductance: 10.5 mH
  • Electric time constant: 5 ms
  • Measuring flange: 255 x 255 x 8 mm, aluminium
  • Mass moment of inertia: 0.942 kgcm²
  • Product weight: 2800 g
  • Permissible axial shaft load: 167.5 N, Permissible radial shaft load: 335 N
  • Rotor position sensor: Absolute single-turn encoder (SAR-ML50AJC00)
  • Rotor position encoder interface: Nikon A-format
  • Rotor position sensor resolution: 20 BIT
  • System accuracy of angle measurement: -120 to 120 ARS
  • Energy efficiency: ENEFF (CN) / Class 2


Product

Manufacturer Material ID -
EMMB-AS-80-07-S30S
Net Weight -
2.83kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
CN
UNSPSC -
26101115
