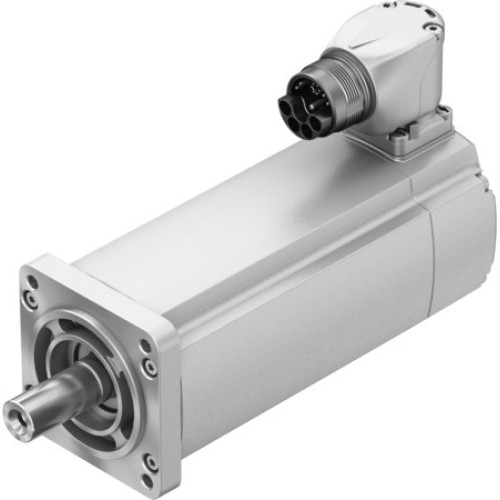

EMMT-AS-60-L-HS-RS Servo motor

Manufacturer's No: EMMT-AS-60-L-HS-RS     Manufacturer: Festo
EMMT-AS-60-L-HS-RS Servo motor

Availability Back Order

£793.57
  • Motor Type: EMMT-AS-60-L-HS-RS
  • Ambient Temperature: -15°C to 40°C (Up to 80°C with derating of -1.5% per °C)
  • Max. Installation Height: 4000m (Derating of -1.0% per 100m above 1000m)
  • Storage Temperature: -20°C to 70°C
  • Relative Air Humidity: 0% to 90%
  • Conforms to Standards: IEC 60034, EN 60034-1
  • Max. Winding Temperature: 155°C
  • Rating Class: S1
  • Temperature Monitoring: Digital via EnDat® 2.2
  • Mounting Position: Optional

Read more

  • Degree of Protection: IP40 (IP65 with rotary shaft seal, IP67 for housing)
  • Balance Quality: G 2.5
  • Detent Torque: <1.0% of peak torque
  • Bearing Lifetime: 20000 hours
  • Electrical Connection: Hybrid plug, M23x1, 15 cores
  • Pollution Degree: 2
  • Materials: RoHS-compliant
  • Vibration Resistance: Severity level 2
  • Shock Resistance: Severity level 2
  • Certifications: RCM, c UL us, CE, UKCA
  • Nominal Operating Voltage: 680V DC
  • Torque: Standstill 1.66Nm, Nominal 1.4Nm, Peak 5.6Nm
  • Speed: Nominal 3000PMI, Max. 14300PMI
  • Power Rating: 440W
  • Current: Stall 3.8A, Nominal 3.2A, Peak 18.3A
  • Thermal Resistance: 1 K/W
  • Inertia: 0.403 KGC
  • Weight: 1910g
  • Axial Load: 70N, Radial Load: 350N
  • Rotor Position Sensor: Absolute single-turn encoder, EnDat® 22 interface, Inductive measuring principle, 262144 position values per revolution, 18 BIT resolution, Accuracy ±120 ARS
  • Mean Time to Failure: 190 years

Accessories



Product

Manufacturer Material ID -
EMMT-AS-60-L-HS-RS
Net Weight -
2.07kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
BG
UNSPSC -
26101115
