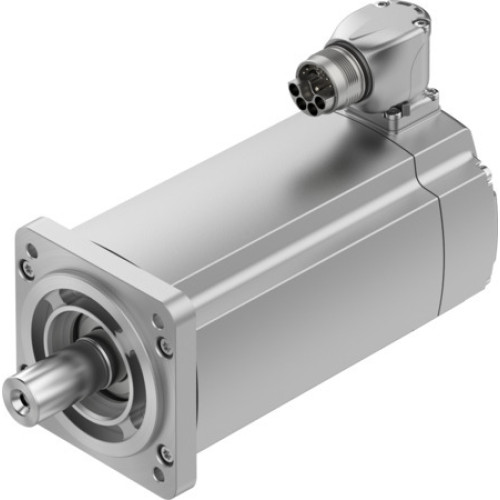

EMMT-AS-80-H-HS-RS Servo motor

Manufacturer's No: EMMT-AS-80-H-HS-RS     Manufacturer: Festo
EMMT-AS-80-H-HS-RS Servo motor

Availability Back Order

£1,072.04
  • Motor Type: EMMT-AS-80-H-HS-RS
  • Ambient Temperature: -15°C to 40°C (Up to 80°C with derating of -1.5% per degree Celsius)
  • Max. Installation Height: Up to 4000m (Derating of -1.0% per 100m above 1000m)
  • Storage Temperature: -20°C to 70°C
  • Relative Air Humidity: 0% to 90%
  • Conforms to Standards: IEC 60034, EN 60034-1
  • Temperature Class: F
  • Max. Winding Temperature: 155°C
  • Rating Class: S1
  • Temperature Monitoring: Digital via EnDat® 2.2

Read more

  • Mounting Position: Optional
  • Degree of Protection: IP40 (Motor shaft), IP65 (Motor shaft with rotary shaft seal), IP67 (Motor housing)
  • Balance Quality: G 2.5
  • Detent Torque: <1.0% of peak torque
  • Bearing Lifetime: 20000 hours
  • Electrical Connection: Hybrid plug, M23x1 connector, 15 connections/cores
  • Pollution Degree: 2
  • Materials: RoHS-compliant
  • Corrosion Resistance: Class CRC 0
  • Vibration Resistance: Severity level 2
  • Shock Resistance: Severity level 2
  • Approvals: RCM, c UL us - Recognized (OL), CE Mark, UKCA Mark
  • Nominal Operating Voltage: 565V DC
  • Number of Pole Pairs: 5
  • Torque: Standstill 4.3Nm, Nominal 3.4Nm, Peak 13.5Nm
  • Speed: Nominal 3000PMI, Max. Rotational 6500PMI, Max. Mechanical 14000PMI
  • Power Rating: 1070W
  • Current: Continuous Stall 4.8A, Nominal 3.8A, Peak 21.7A
  • Constants: Motor 0.9NMA, Standstill Torque 1NMA, Voltage Phase-to-Phase 61.4YUR
  • Resistance: Phase-to-Phase Winding 2.21OHM
  • Inductance: Phase-to-Phase Winding 10.7C14
  • Time Constants: Electric 7.2ms, Thermal 51min
  • Thermal Resistance: 0.65K/W
  • Mass: Product Weight 3910g, Moment of Inertia 1.91KGC
  • Shaft Loads: Axial 120N, Radial 620N
  • Rotor Position Sensor: Absolute single-turn encoder, EnDat® 22 interface, Inductive measuring principle
  • Resolution: 18 BIT, Position Values per Revolution 262144
  • System Accuracy of Angle Measurement: -120 to 120 ARS
  • Mean Time to Failure: 190 years for rotor position sensor
  • Energy Efficiency: ENEFF (CN) / Class 2


Product

Manufacturer Material ID -
EMMT-AS-80-H-HS-RS
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85015220
Country of Origin -
BG
UNSPSC -
30102206
Festo

Availability Back Order

£1,072.04
