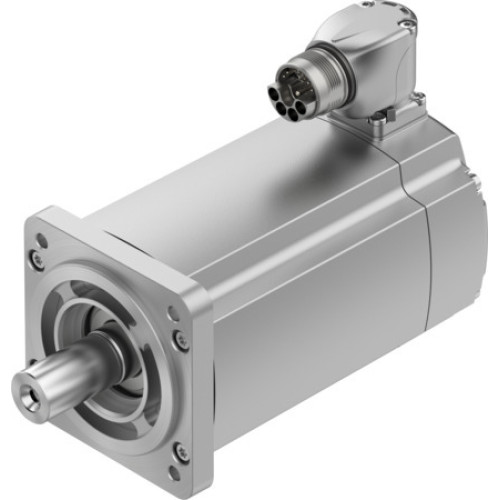

EMMT-AS-80-M-LS-RS Servo motor

Manufacturer's No: EMMT-AS-80-M-LS-RS     Manufacturer: Festo
EMMT-AS-80-M-LS-RS Servo motor

Availability On Request

£856.25
  • Model: EMMT-AS-80-M-LS-RS Servo motor
  • Ambient Temperature: -15°C to 40°C (Up to 80°C with derating of -1.5% per degree Celsius)
  • Max. Installation Height: 4000m (Derating of -1.0% per 100m above 1000m)
  • Storage Temperature: -20°C to 70°C
  • Relative Air Humidity: 0% to 90%
  • Conforms to Standards: IEC 60034, EN 60034-1
  • Max. Winding Temperature: 155°C
  • Rating Class: S1
  • Temperature Monitoring: Digital via EnDat® 2.2
  • Motor Types: IM B5, IM V1, IM V3

Read more

  • Degree of Protection: IP40 (shaft), IP65 (shaft with seal), IP67 (housing)
  • Balance Quality: G 2.5
  • Detent Torque: <1.0% of peak torque
  • Bearing Lifetime: 20000 hours
  • Electrical Connection: Hybrid plug, M23x1, 15 cores
  • Pollution Degree: 2
  • Materials: RoHS-compliant
  • Vibration Resistance: Level 2
  • Shock Resistance: Level 2
  • Approvals: RCM, c UL us, CE, UKCA
  • Nominal Operating Voltage: 325V DC
  • Torque: Standstill 2.6Nm, Nominal 2.2Nm, Peak 6.4Nm
  • Speed: Nominal 3000PMI, Max. 6150PMI, Mechanical 14000PMI
  • Power: 690W
  • Current: Stall 4.9A, Nominal 4.1A, Peak 17.1A
  • Constants: Motor 0.54 NMA, Standstill Torque 0.62 NMA
  • Resistance: 2.04 OHM
  • Inductance: 8.9 C14
  • Time Constants: Electric 6.5ms, Thermal 45min
  • Thermal Resistance: 0.78 K/W
  • Inertia: 1.035 KGC
  • Weight: 2640g
  • Axial Load: 120N, Radial Load: 620N
  • Rotor Position Sensor: Absolute single-turn encoder, EnDat® 22 interface, Inductive measuring principle
  • Resolution: 18 BIT, Accuracy: -120 to 120 ARS
  • MTTF: 190 years
  • Energy Efficiency: ENEFF (CN) / Class 2


Product

Manufacturer Material ID -
EMMT-AS-80-M-LS-RS
Net Weight -
3.31kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
BG
UNSPSC -
26101115
Festo

Availability On Request

£856.25
