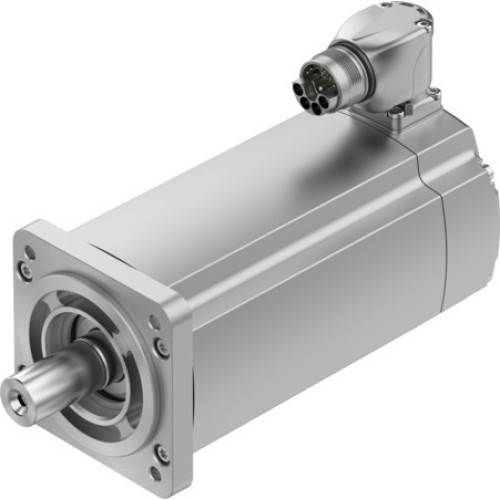

EMMT-AS-80-S-LS-RSB Servo motor

Manufacturer's No: EMMT-AS-80-S-LS-RSB     Manufacturer: Festo
EMMT-AS-80-S-LS-RSB Servo motor

Availability On Request

£1,009.38
  • Servo motor model: EMMT-AS-80-S-LS-RSB
  • Ambient temperature range: -15°C to 40°C (up to 80°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 meters (derating of -1.0% per 100 meters above 1000 meters)
  • Storage temperature range: -20°C to 70°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Temperature monitoring: Digital motor temperature transmission via EnDat® 2.2
  • Motor types: IM B5, IM V1, IM V3

Read more

  • Degree of protection: IP40 for motor shaft, IP65 for motor shaft with rotary shaft seal, IP67 for motor housing
  • Balance quality: G 2.5
  • Detent torque: <1.0% of peak torque
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection type: Hybrid plug, connector system: M23x1, 15 connections/cores
  • Pollution degree: 2, RoHS-compliant
  • Corrosion resistance class: CRC 0 (No corrosion stress)
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Certifications: RCM trademark, c UL us - Recognized (OL), CE mark, UKCA marking
  • Nominal operating voltage DC: 325V
  • Number of pole pairs: 5
  • Torque specifications: Standstill torque: 1.46 Nm, Nominal torque: 1.3 Nm, Peak torque: 2.8 Nm
  • Speed specifications: Nominal rotary speed: 3000 RPM, Max. rotational speed: 6700 RPM, Max. mechanical speed: 14000 RPM
  • Power rating: 408W
  • Current specifications: Continuous stall current: 3.1A, Nominal motor current: 2.7A, Peak current: 8.4A
  • Thermal specifications: Thermal time constant: 42 minutes, Thermal resistance: 0.95 K/W
  • Mechanical specifications: Total mass moment of inertia: 0.897 kgcm, Product weight: 2720g, Permissible axial shaft load: 120N, Permissible radial shaft load: 620N
  • Rotor position sensor: Absolute single-turn encoder, ECI 1118, Inductive measuring principle, 262144 position values per revolution
  • Brake specifications: Holding torque: 4.5 Nm, Operating voltage DC: 24V, Brake current consumption: 0.5A, Power consumption: 12W, Brake coil resistance: 48 Ohm, Brake separation time: 55ms, Brake closing time: 15ms, Max. brake no-load speed: 10000 RPM, Max. friction per braking process: 8200J, Total brake friction: 580KJ, Mass moment of inertia of brake: 0.249 kgcm, Switching cycles holding brake: 10 million idle actuations, Mean time to failure (MTTF): 190 years


Product

Manufacturer Material ID -
EMMT-AS-80-S-LS-RSB
Net Weight -
3.38kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
BG
UNSPSC -
26101115
