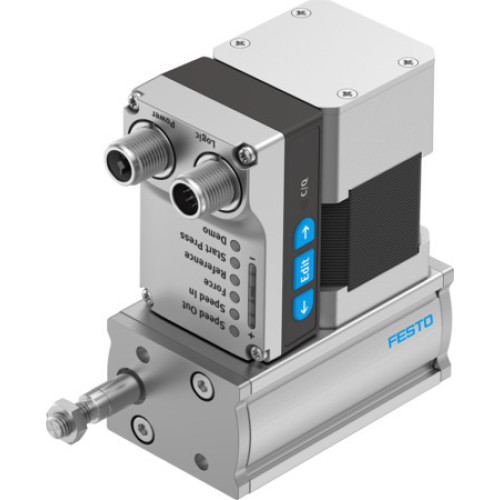

EPCE-TB-45-20-FL-ST-M-H1-PLK-AA Electric cylinder unit

Manufacturer's No: EPCE-TB-45-20-FL-ST-M-H1-PLK-AA     Manufacturer: Festo
EPCE-TB-45-20-FL-ST-M-H1-PLK-AA Electric cylinder unit

Availability On Request

£573.84
  • Electric cylinder unit EPCE-TB-45-20-FL-ST-M-H1-PLK-AA
  • Effective diameter of drive pinion: 10.18 mm
  • Size: 45
  • Stroke: 20 mm
  • Piston rod thread: M6
  • Toothed-belt stretch: 0.31%
  • Toothed-belt pitch: 2 mm
  • Type of motor: Stepper motor
  • Position detection: Motor encoder
  • Design: Electric cylinder with toothed belt and integrated drive

Read more

  • Protection against torque/guide: Plain-bearing guide
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface, integrated end-position sensing
  • Max. acceleration: 9 m/s²
  • Max. speed: 0.44 m/s
  • Repetition accuracy: ±0.05 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage DC: 24 V, Nominal current: 3 A
  • Parameterisation interface: IO-Link, User interface
  • Rotor position transducer resolution: 16 bit
  • Power supply connection type: Plugs, M12x1, T-coded
  • Approval: RCM trademark, KC mark: KC-EMV, CE mark, UKCA marking
  • Vibration resistance: Transport application test, Shock resistance: Shock test
  • Corrosion resistance class CRC: 0
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0-90%
  • Degree of protection: IP40, Protection class: III
  • Ambient temperature: 0°C to 50°C
  • Impact energy in end positions: 0.003 J
  • Max. moment My and Mz: 0.4 Nm, Max. moment Fx: 85 N
  • Reference value effective load: 5 kg horizontal, 2.5 kg vertical
  • Reference service life: 200 km, Maintenance interval: Life-time lubrication
  • Moving mass: 92 g, Product weight: 834 g
  • Number of digital logic outputs and inputs: 2, Logic input based on IEC 61131-2, type 1
  • IO-Link support: Yes, Protocol version: Device V 1.1, Communication mode: COM3 (230.4 kBaud)
  • Max. cable length: 15 m outputs, 15 m inputs, 20 m with IO-Link operation
  • Switching logic for outputs and inputs: PNP (positive switching)
  • Material cover and housing: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel, Material toothed belt: Polychloroprene with glass fibre
