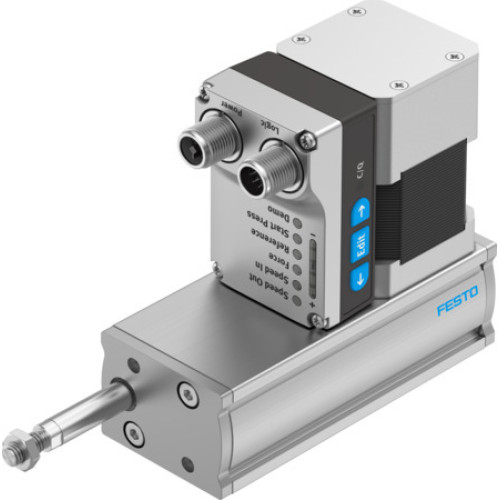

EPCE-TB-45-50-FL-ST-M-H1-PLK-AA Electric cylinder unit

Manufacturer's No: EPCE-TB-45-50-FL-ST-M-H1-PLK-AA     Manufacturer: Festo
EPCE-TB-45-50-FL-ST-M-H1-PLK-AA Electric cylinder unit

Availability On Request

£580.39
  • Electric cylinder unit EPCE-TB-45-50-FL-ST-M-H1-PLK-AA
  • Effective diameter of drive pinion: 10.18 mm
  • Size: 45
  • Stroke: 50 mm
  • Piston rod thread: M6
  • Toothed-belt stretch: 0.31%
  • Toothed-belt pitch: 2 mm
  • Type of motor: Stepper motor
  • Position detection: Motor encoder
  • Design: Electric cylinder with toothed belt and integrated drive

Read more

  • Protection against torque/guide: With plain-bearing guide
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED, ready status indication: LED
  • Max. acceleration: 9 m/s², max. speed: 0.44 m/s, speed "Speed press": 0.02 m/s
  • Repetition accuracy: ±0.05 mm
  • Features of digital logic outputs: Configurable, not galvanically isolated
  • Duty cycle: 100%
  • Insulation protection class: B
  • Max. current digital logic outputs: 100 mA, max. current consumption: 3000 A, max. current consumption, logic: 0.3 mA
  • Nominal voltage DC: 24 V, nominal current: 3 A
  • Parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Power supply: Plugs, connection system: M12x1, T-coded according to EN 61076-2-111, 4 pins/wires
  • Approval: RCM trademark, KC mark: KC-EMV, CE mark to EU EMC Directive and EU RoHS Directive, UKCA marking to UK instructions for EMC and UK RoHS instructions
  • Vibration resistance: Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6, shock resistance: Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class CRC: 0 - No corrosion stress, LABS (PWIS) conformity: VDMA24364 zone III
  • Storage temperature: -20°C to 60°C, relative air humidity: 0 - 90%
  • Degree of protection: IP40, protection class: III, ambient temperature: 0°C to 50°C
  • Impact energy in end positions: 0.003 J, max. moment Mx: 0 Nm, My: 0.4 Nm, Mz: 0.4 Nm, max. feed force Fx: 85 N
  • Reference value effective load: Horizontal 5 kg, vertical 2.5 kg
  • Feed constant: 32 Y13, reference service life: 500 km, maintenance interval: Life-time lubrication
  • Moving mass: 106 g, moving mass for 0 mm stroke: 83 g, additional moving mass per 10 mm stroke: 4.55 g
  • Product weight: 922 g, basic weight for 0 mm stroke: 775 g, additional weight per 10 mm stroke: 29 g
  • Number of digital logic outputs 24 V DC: 2, number of digital logic inputs: 2, specification logic input: Based on IEC 61131-2, type 1, working range of logic input: 24 V
  • IO-Link support: Yes, Protocol version: Device V 1.1, communication mode: COM3 (230.4 kBaud), Port class: A, number of ports: 1
  • Max. cable length: 15 m outputs, 15 m inputs, 20 m with IO-Link operation
  • Switching logic for outputs: PNP (positive switching), for inputs: PNP (positive switching), connection technology: Plugs
  • Logic interface connection type: Plug, technology: M12x1, A-coded according to EN 61076-2-101, 8 pins/wires
  • Type of mounting: Via female thread, with accessories
  • Material cover: Anodised wrought aluminium alloy, housing: Anodised wrought aluminium alloy, piston rod: High-alloy stainless steel, toothed belt: Polychloroprene with glass fibre
