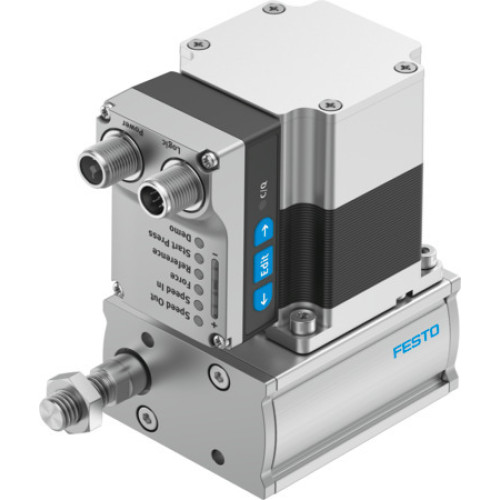

EPCE-TB-60-10-FL-ST-M-H1-PLK-AA Electric cylinder unit

Manufacturer's No: EPCE-TB-60-10-FL-ST-M-H1-PLK-AA     Manufacturer: Festo
EPCE-TB-60-10-FL-ST-M-H1-PLK-AA Electric cylinder unit

Availability On Request

£612.24
  • Electric cylinder unit EPCE-TB-60-10-FL-ST-M-H1-PLK-AA
  • Effective drive pinion diameter: 10.18 mm
  • Size: 60
  • Stroke: 10 mm
  • Piston rod thread: M10x1.25
  • Toothed-belt stretch: 0.375%
  • Toothed-belt pitch: 2 mm
  • Type of motor: Stepper motor
  • Position detection: Motor encoder
  • Design: Electric cylinder with toothed belt and integrated drive

Read more

  • Protection against torque/guide: Plain-bearing guide
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface, integrated end-position sensing
  • Max. acceleration: 9 m/s²
  • Max. speed: 0.6 m/s
  • Repetition accuracy: ±0.05 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage DC: 24 V, Nominal current: 5.3 A
  • Parameterisation interface: IO-Link, User interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Degree of protection: IP40, Protection class: III
  • Ambient temperature: 0°C to 50°C, Impact energy in end positions: 0.016 J
  • Max. feed force Fx: 150 N
  • Reference value effective load: Horizontal 10 kg, Vertical 5 kg
  • Reference service life: 100 km, Maintenance interval: Life-time lubrication
  • Product weight: 1396 g
  • Material cover/housing: Anodised wrought aluminium alloy, Material piston rod: High-alloy stainless steel, Material toothed belt: Polychloroprene with glass fibre


Product

Manufacturer Material ID -
EPCE-TB-60-10-FL-ST-M-H1-PLK-AA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£612.24
