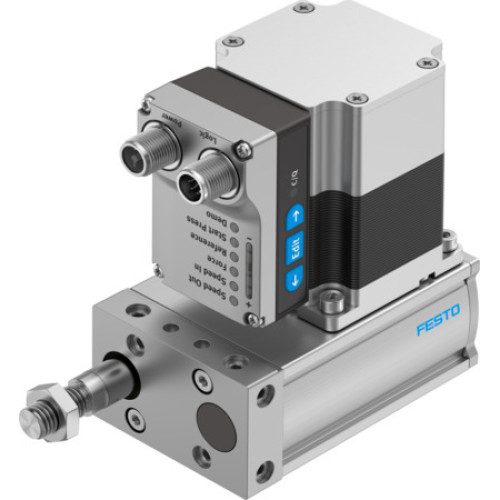

EPCE-TB-60-20-FL-MF-ST-M-H1-PLK-AA Electric cylinder unit

Manufacturer's No: EPCE-TB-60-20-FL-MF-ST-M-H1-PLK-AA     Manufacturer: Festo
EPCE-TB-60-20-FL-MF-ST-M-H1-PLK-AA Electric cylinder unit

Availability On Request

£621.67
  • Electric cylinder unit EPCE-TB-60-20-FL-MF-ST-M-H1-PLK-AA
  • Effective diameter of drive pinion: 10.18 mm
  • Size: 60
  • Stroke: 20 mm
  • Piston rod thread: M10x1.25
  • Toothed-belt stretch: 0.375%
  • Toothed-belt pitch: 2 mm
  • Type of motor: Stepper motor
  • Position detection: Motor encoder
  • Max. acceleration: 9 m/s²

Read more

  • Max. speed: 0.6 m/s
  • Repetition accuracy: ±0.05 mm
  • Nominal voltage DC: 24 V
  • Nominal current: 5.3 A
  • Rotor position transducer resolution: 16 bit
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Max. feed force Fx: 150 N
  • Reference value effective load, horizontal: 10 kg
  • Reference value effective load, vertical: 5 kg
  • Reference service life: 200 km
  • Material cover: Anodised wrought aluminium alloy
  • Material housing: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Material toothed belt: Polychloroprene with glass fibre


Product

Manufacturer Material ID -
EPCE-TB-60-20-FL-MF-ST-M-H1-PLK-AA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£621.67
