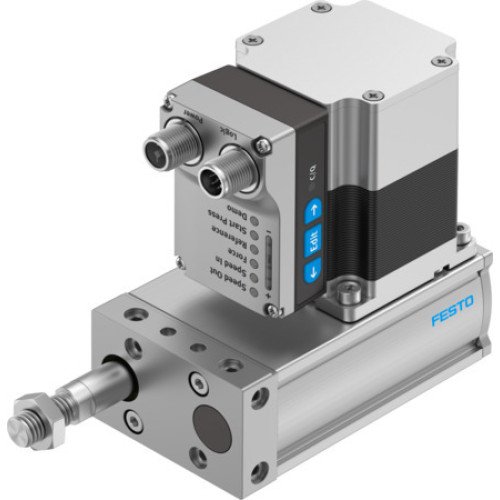

EPCE-TB-60-30-FL-MF-ST-M-H1-PLK-AA Electric cylinder unit

Manufacturer's No: EPCE-TB-60-30-FL-MF-ST-M-H1-PLK-AA     Manufacturer: Festo
EPCE-TB-60-30-FL-MF-ST-M-H1-PLK-AA Electric cylinder unit

Availability On Request

£624.26
  • Electric cylinder unit
  • Effective diameter of drive pinion: 10.18 mm
  • Size: 60
  • Stroke: 30 mm
  • Piston rod thread: M10x1.25
  • Toothed-belt stretch: 0.375%
  • Toothed-belt pitch: 2 mm
  • Type of motor: Stepper motor
  • Position detection: Motor encoder
  • Design: Electric cylinder with toothed belt and integrated drive

Read more

  • Protection against torque/guide: Plain-bearing guide
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface, integrated end-position sensing
  • Max. acceleration: 9 m/s^2
  • Max. speed: 0.6 m/s
  • Repetition accuracy: ±0.05 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage DC: 24 V
  • Nominal current: 5.3 A
  • Parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Degree of protection: IP40
  • Protection class: III
  • Ambient temperature: 0°C to 50°C
  • Impact energy in end positions: 0.016 J
  • Max. moment My: 1 Nm
  • Max. feed force Fx: 150 N
  • Reference value effective load, horizontal: 10 kg, vertical: 5 kg
  • Reference service life: 300 km
  • Moving mass: 227 g, for 0 mm stroke: 197 g, additional per 10 mm stroke: 9.75 g
  • Product weight: 1545 g, for 0 mm stroke: 1407 g, additional per 10 mm stroke: 46 g
  • Number of digital logic outputs 24 V DC: 2, inputs: 2
  • IO-Link support: Yes, Protocol version: Device V 1.1, communication mode: COM3 (230.4 kBaud)
  • Max. cable length: 15 m for outputs and inputs, 20 m with IO-Link operation
  • Switching logic for outputs and inputs: PNP (positive switching)
  • Material cover and housing: Anodised wrought aluminium alloy, piston rod: High-alloy stainless steel, toothed belt: Polychloroprene with glass fibre


Product

Manufacturer Material ID -
EPCE-TB-60-30-FL-MF-ST-M-H1-PLK-AA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
HU
UNSPSC -
30102206
