ERMB-25 Rotary module

Manufacturer's No: ERMB-25     Manufacturer: Festo

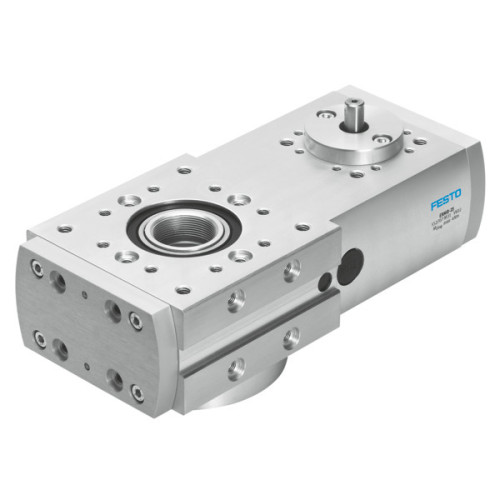

ERMB-25 Rotary module

Availability Back Order

£1,512.98
  • Size: 25
  • Design: Electromechanical rotary module with toothed belt
  • Mounting position: Any
  • Rotation angle: Endless
  • Gear unit ratio: 4:1
  • Product weight: 1460 g
  • Drive pinion diameter: 8 mm
  • Toothed-belt pitch: 3 mm
  • Max. drive output speed: 300 PMI
  • Max. drive input speed: 1200 PMI

Read more

  • Max. drive torque: 2.2 Nm
  • Frictional torque independent of load: 0.18 Nm
  • Ambient temperature: -10°C to 60°C
  • LABS (PWIS) conformity: VDMA24364 zone III
  • RoHS-compliant materials
  • Housing material: Wrought aluminium alloy, anodised
  • Drive shaft material: Wrought aluminium alloy, anodised, high-alloy stainless steel
  • Cover material: Wrought aluminium alloy, anodised
  • Toothed belt material: Polychloroprene with glass fibre

Accessories



Product

Manufacturer Material ID -
ERMB-25
Net Weight -
1.69kg

Additional Product Information

Commodity Code -
84834090
Country of Origin -
DE
UNSPSC -
31261504
