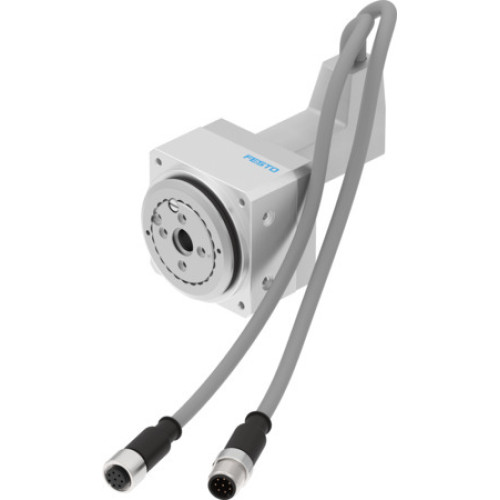

ERMO-12-ST-E Rotary drive

Manufacturer's No: ERMO-12-ST-E     Manufacturer: Festo
ERMO-12-ST-E Rotary drive

Availability On Request

£871.82
  • Size: 12
  • Design: Electromechanical rotary drive with integrated gear unit
  • Mounting: Any position with internal (female) thread
  • Rotation angle: Endless
  • Gear unit ratio: 9:1
  • Nominal torque: 0.15 Nm
  • Nominal rotary speed: 100 RPM
  • Max. speed at 90°: 200 RPM
  • Impact energy in end positions: 0.00002 J
  • Torsional backlash: 0.2 degrees

Read more

  • Repetition accuracy: ±0.05 degrees
  • Max. axial force: 180 N
  • Max. radial force: 200 N
  • Permissible mass moment of inertia: 0.0003 kgm^2
  • Product weight: 475 g
  • Stepper angle for complete step: 1.8 degrees
  • Stepping angle tolerance: ±5%
  • Mass moment of inertia JO: 0.0079 kgm^2
  • Duty cycle: 100%
  • Nominal operating voltage DC: 24 V
  • Nominal motor current: 0.8 A
  • Insulation protection class: B
  • Type of motor: Stepper motor
  • Rotor position sensor: Incremental encoder
  • Rotor position encoder interface: RS422 TTL AB channels + zero index
  • Rotor position sensor measuring principle: Optical
  • Electrical connector system: Plug
  • Approval: RCM trademark, CE mark (EU EMC Directive, EU RoHS Directive), UKCA marking (UK EMC instructions, UK RoHS instructions)
  • Bending radius, fixed cable: 60 mm
  • Interface code basis: E8-35
  • Degree of protection: IP40
  • Storage temperature: -20°C to 60°C
  • Ambient temperature: 0°C to 50°C
  • Relative air humidity: 0-85%, non-condensing
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Note on materials: RoHS-compliant
  • Material: Flange - Wrought aluminium alloy, Anodised
  • Material: Housing - Wrought aluminium alloy, Anodised


Product

Manufacturer Material ID -
ERMO-12-ST-E
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
Festo

Availability On Request

£871.82
