ESBF-BS-80-400-5P Electric drive

Manufacturer's No: ESBF-BS-80-400-5P     Manufacturer: Festo

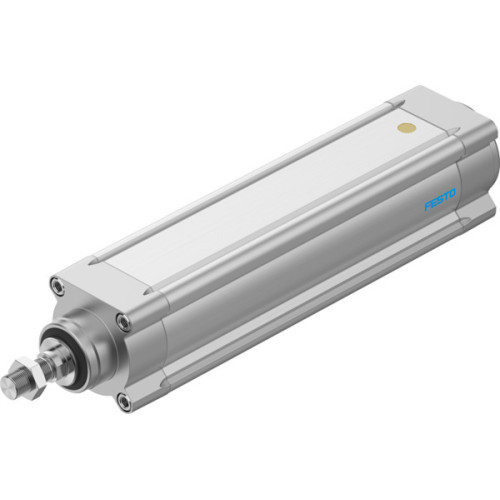

ESBF-BS-80-400-5P Electric drive

Availability On Request

£2,532.27
  • Electric drive ESBF-BS-80-400-5P with ball screw spindle
  • Size: 80
  • Stroke: 400 mm
  • Piston rod thread: M20x1.5
  • Reversing backlash: 30 µm
  • Spindle diameter: 32 mm
  • Spindle pitch: 5
  • Torsional backlash at piston rod: ±0.5°
  • ISO 15552 standard compliant
  • Mounting position: optional

Read more

  • Type of motor: Servo motor
  • Position detection: Via proximity switch
  • Design: Electric cylinder with ball screw
  • Protection against torque/guide: With plain-bearing guide
  • Max. acceleration: 5 m/s²
  • Max. speed: 0.25 m/s
  • Repetition accuracy: ±0.01 mm
  • Duty cycle: 100%
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 95%
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 60°C
  • Max. drive torque: 11.9 Nm
  • Max. radial force at drive shaft: 1100 N
  • Max. feed force Fx: 12000 N
  • Frictional torque independent of load: 0.5 Nm
  • Reference value effective load, horizontal: 1200 kg
  • Reference value effective load, vertical: 1200 kg
  • Mass moment of inertia JH per metre of stroke: 7.699 kg·cm²
  • Mass moment of inertia JL per kg of working load: 0.00633 kg·cm²
  • Mass moment of inertia JO: 1.5297 kg·cm²
  • Moving mass for 0 mm stroke: 5300 g
  • Additional moving mass per 10 mm stroke: 103 g
  • Basic weight for 0 mm stroke: 7393 g
  • Additional weight per 10 mm stroke: 155 g
  • Type of mounting: Via female thread or accessories
  • Interface code, actuator: D80
  • RoHS-compliant materials
  • Material cover: Cast aluminium, coated
  • Material piston rod: High-alloy stainless steel
  • Material screws: Galvanised steel
  • Material spindle nut: Rolled steel
  • Material spindle: Rolled steel
  • Material cylinder barrel: Smooth-anodised wrought aluminium alloy


Product

Manufacturer Material ID -
ESBF-BS-80-400-5P
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251501
Festo

Availability On Request

£2,532.27
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
