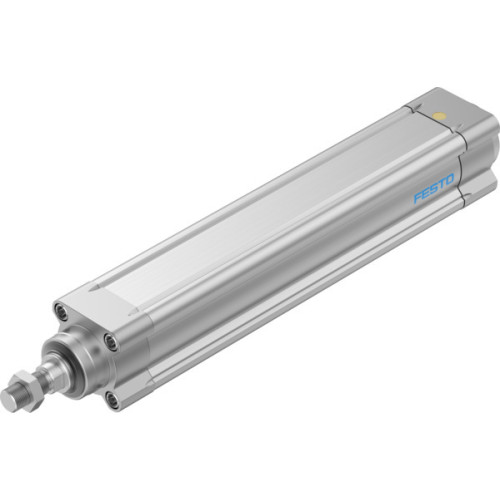

ESBF-LS-50-400-4P Electric drive

Manufacturer's No: ESBF-LS-50-400-4P     Manufacturer: Festo
ESBF-LS-50-400-4P Electric drive

Availability On Request

£1,104.94
  • Electric drive ESBF-LS-50-400-4P with lead screw spindle
  • Size: 50, Stroke: 400 mm
  • Piston rod thread: M16x1.5
  • Reversing backlash: 100 µm
  • Spindle diameter: 20 mm, Spindle pitch: 4
  • Torsional backlash at piston rod: 0.15°
  • Type of motor: Stepper motor, Servo motor
  • Position detection: Via proximity switch
  • Design: Electric cylinder with lead screw spindle
  • Max. acceleration: 2.5 m/s², Max. speed: 0.2 m/s

Read more

  • Repetition accuracy: ±0.05 mm, Duty cycle: 100%
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • Protection: IP40, Relative air humidity: 0 - 95%
  • Max. drive torque: 4.8 Nm
  • Max. radial force at drive shaft: 300 N, Max. feed force Fx: 1600 N
  • Frictional torque independent of load: 0.3 Nm
  • Mass moment of inertia: JH per metre of stroke: 1.2382 kgcm², JL per kg of working load: 0.004 kgcm², JO: 0.1407 kgcm²
  • Moving mass for 0 mm stroke: 532 g, Additional moving mass per 10 mm stroke: 13 g
  • Basic weight for 0 mm stroke: 1716 g, Additional weight per 10 mm stroke: 67 g
  • Material cover: Wrought aluminium alloy, smooth anodised
  • Material piston rod: High-alloy stainless steel
  • Material screws: Galvanised steel, Material spindle nut: Rolled steel, Material spindle: Rolled steel
  • Material cylinder barrel: Smooth-anodised wrought aluminium alloy


Product

Manufacturer Material ID -
ESBF-LS-50-400-4P
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251501
Festo

Availability On Request

£1,104.94
