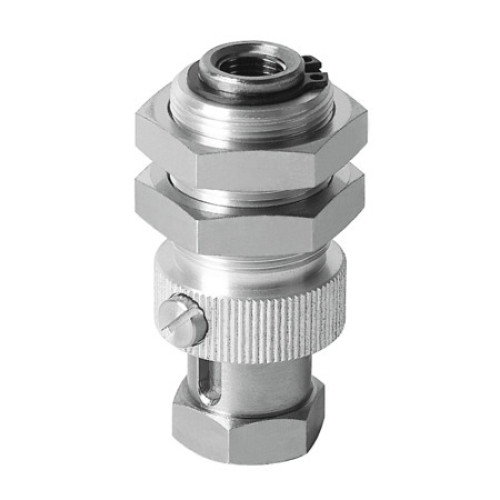

ESH-HC-5-G Suction cup complete holder

Manufacturer's No: ESH-HC-5-G     Manufacturer: Festo
ESH-HC-5-G Suction cup complete holder

Availability On Request

£78.46
  • Suction cup complete holder ESH-HC-5-G with height compensator
  • Height compensator: 10 mm
  • Volume: 3,327 cm3
  • Assembly position: Vertical
  • Design structure: Vacuum connection at top, with height compensation
  • Nominal size: 8.4 mm
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: -10°C to 60°C

Read more

  • Product weight: 112 g
  • Type of mounting: Via lock nut
  • Suction cup mounting: M10
  • Vacuum connection: G1/8
  • Materials: RoHS-compliant
    • Retaining bracket: Aluminium, Nickel-plated brass, POM, Tempered steel, High-alloy steel


Product

Manufacturer Material ID -
ESH-HC-5-G
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£78.46
