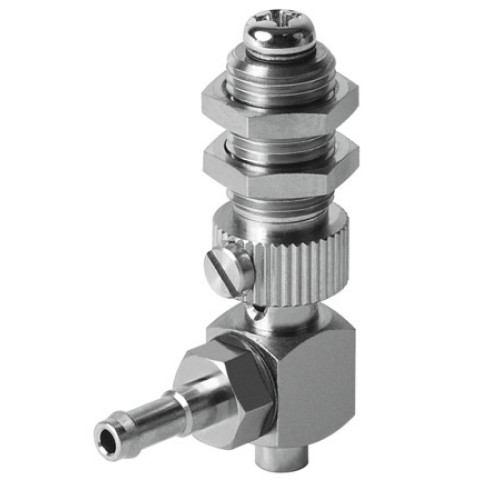

ESH-HD-1-PK Suction cup complete holder

Manufacturer's No: ESH-HD-1-PK     Manufacturer: Festo
ESH-HD-1-PK Suction cup complete holder

Availability On Request

£43.28
  • Suction cup complete holder ESH-HD-1-PK with height compensator
  • Height compensator: 3 mm
  • Volume: 0.12 cm3
  • Assembly position: Vertical
  • Design structure: Vacuum connection at side, with height compensation
  • Correlation to suction-cup holder: Size 1
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: -10°C to 60°C

Read more

  • Product weight: 11 g
  • Type of mounting: Via lock nut
  • Suction cup mounting: Diameter 3 mm
  • Vacuum connection: PK-3
  • Materials: RoHS-compliant, NBR seals, steel seals, aluminium retaining bracket, nickel-plated brass retaining bracket, POM retaining bracket, tempered steel retaining bracket, high-alloy steel retaining bracket


Product

Manufacturer Material ID -
ESH-HD-1-PK
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£43.28
