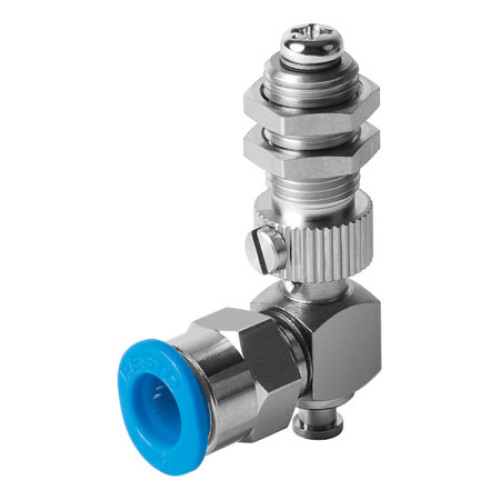

ESH-HD-1-QS Suction cup complete holder

Manufacturer's No: ESH-HD-1-QS     Manufacturer: Festo
ESH-HD-1-QS Suction cup complete holder

Availability On Request

£45.17
  • Suction cup complete holder ESH-HD-1-QS
  • Height compensator: 3 mm
  • Volume: 0.241 cm3
  • Assembly position: Vertical
  • Design structure: Vacuum connection at side, with height compensation
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: 0 to 60 degrees Celsius
  • Product weight: 13 g

Read more

  • Type of mounting: Via lock nut
  • Suction cup mounting diameter: 3 mm
  • Vacuum connection: QS-4
  • Materials: RoHS-compliant, NBR seals, steel seals, aluminium retaining bracket, nickel-plated brass retaining bracket, POM retaining bracket, tempered steel retaining bracket, high-alloy steel retaining bracket


Product

Manufacturer Material ID -
ESH-HD-1-QS
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£45.17
