189237

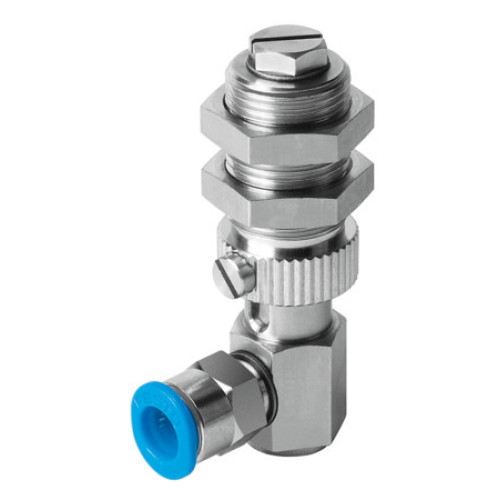

ESH-HD-3-QS Suction cup complete holder

Manufacturer's No: ESH-HD-3-QS     Manufacturer: Festo
ESH-HD-3-QS Suction cup complete holder

Availability On Request

£52.42
  • Suction cup complete holder ESH-HD-3-QS
  • Height compensator: 6 mm
  • Volume: 0.573 cm3
  • Assembly position: Vertical
  • Design structure: Vacuum connection at side, with height compensation
  • Nominal size: 3.3 mm
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: 0 to 60 degrees Celsius

Read more

  • Product weight: 46 g
  • Type of mounting: Via lock nut
  • Suction cup mounting: M4
  • Vacuum connection: QS-6
  • Materials: RoHS-compliant, NBR seals, Steel seals, Aluminium retaining bracket, Nickel-plated brass retaining bracket, POM retaining bracket, Tempered steel retaining bracket, High-alloy steel retaining bracket


Product

Manufacturer Material ID -
ESH-HD-3-QS
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£52.42
