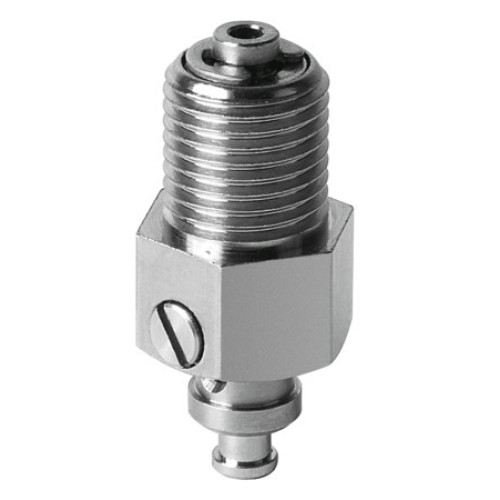

ESH-HF-1-M10X1 Suction cup complete holder

Manufacturer's No: ESH-HF-1-M10X1     Manufacturer: Festo
ESH-HF-1-M10X1 Suction cup complete holder

Availability On Request

£46.72
  • Suction cup holder ESH-HF-1-M10X1 with height compensator
  • Height compensator: 2.6 mm
  • Nominal size: 2 mm
  • Volume: 0.108 cm3
  • Mounting position: Vertical
  • Design: Vacuum connection at top, with height compensation
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Ambient temperature: -10°C to 60°C

Read more

  • Product weight: 14 g
  • Type of mounting: Via male thread, via vacuum port
  • Suction cup mounting: Diameter 3 mm
  • Vacuum connection: M10x1
  • Materials: RoHS-compliant, NBR seals, POM seals, tempered steel retaining bracket


Product

Manufacturer Material ID -
ESH-HF-1-M10X1
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£46.72
