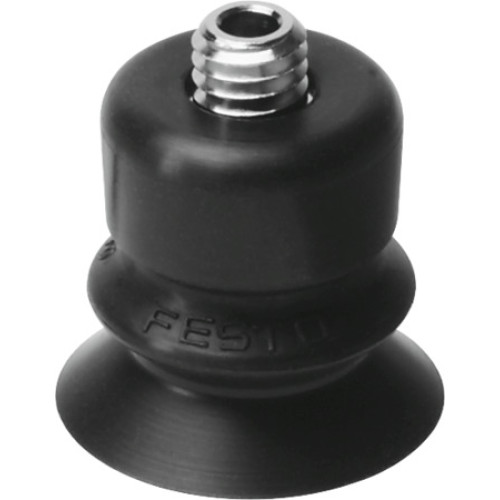

ESS-10-BN Suction cup complete

Manufacturer's No: ESS-10-BN     Manufacturer: Festo
ESS-10-BN Suction cup complete

Availability On Request

£9.76
  • Suction cup model: ESS-10-BN
  • Suction cup diameter: 10mm
  • Height compensator: 4mm
  • Min. workpiece radius: 20mm
  • Nominal size: 2mm
  • Suction cup volume: 0.38 cubic centimeters
  • Suction cup shape: Round bellows with 1.5 convolutions
  • Operating pressure range: -0.95 to 0 bar, -13.775 to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)

Read more

  • Corrosion resistance class: CRC 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Suitable for food use (refer to supplementary material)
  • Temperature range: -10°C to 70°C
  • Holding force at nominal pressure: 4.7N
  • Lateral force at nominal pressure: 4.5N
  • Product weight: 1.8g
  • Mounting type: Via vacuum port
  • Vacuum connection: M4
  • Color: Black
  • Shore hardness: 50 +/- 5
  • Material: Nickel-plated brass screwed plug, NBR suction cup material
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ESS-10-BN
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
31251600
Festo

Availability On Request

£9.76
