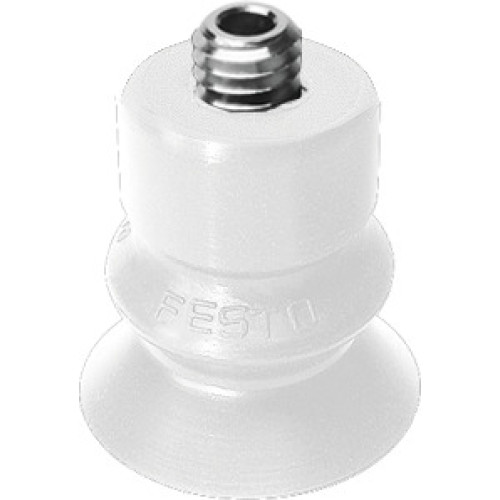

ESS-10-BS Suction cup complete

Manufacturer's No: ESS-10-BS     Manufacturer: Festo
ESS-10-BS Suction cup complete

Availability On Request

£12.09
  • Suction cup complete model: ESS-10-BS
  • Suction cup diameter: 10mm
  • Height compensator for suction cup: 4mm
  • Min. workpiece radius: 20mm
  • Nominal size: 2mm
  • Suction cup volume: 0.38 cubic centimeters
  • Suction cup shape: Round bellows with 1.5 convolutions
  • Operating pressure range: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air based on ISO 8573-1:2010

Read more

  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Suitable for use with food (refer to supplementary material information)
  • Ambient temperature range: -30°C to 180°C
  • Holding force at nominal operating pressure: 4.7N
  • Lateral force at nominal operating pressure: 2.5N
  • Product weight: 1.8g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M4
  • Colour: Transparent
  • Shore hardness: 50 +/- 5
  • Material: Nickel-plated brass (screwed plug), VMQ (silicone) suction cup
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ESS-10-BS
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£12.09
