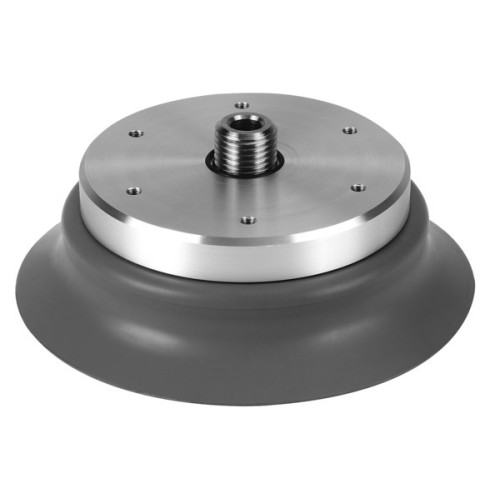

ESS-100-EF Suction cup complete

Manufacturer's No: ESS-100-EF     Manufacturer: Festo
ESS-100-EF Suction cup complete

Availability On Request

£218.67
  • Suction cup complete model: ESS-100-EF
  • Min. workpiece radius: 200 mm
  • Nominal size: 6 mm
  • Suction cup diameter: 100 mm
  • Suction cup volume: 84.66 cubic centimeters
  • Suction cup shape: Round extra deep
  • Operating pressure range: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • Corrosion resistance class: 1 (Low corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature range: -10°C to 200°C
  • Holding force at nominal operating pressure: 440.8 N
  • Lateral force at nominal operating pressure: 254.5 N
  • Product weight: 228 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M10
  • Colour: Grey
  • Shore hardness: 60 +/- 5
  • Material: Suction cup - FPM, Screwed plug - POM, Nickel-plated steel, Steel (galvanised and chrome-plated)
  • RoHS-compliant materials
  • Suitable for food use (refer to supplementary material information)


Product

Manufacturer Material ID -
ESS-100-EF
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
