189363

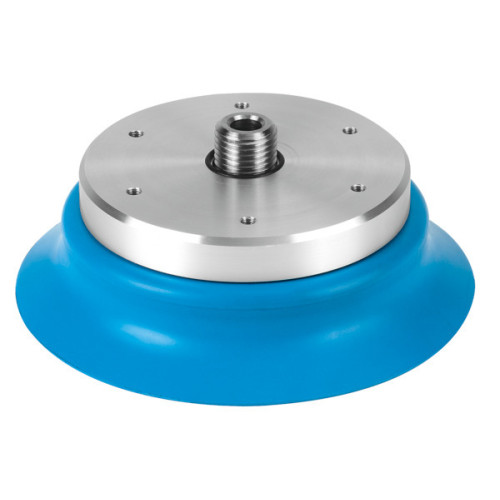

ESS-100-EU Suction cup complete

Manufacturer's No: ESS-100-EU     Manufacturer: Festo
ESS-100-EU Suction cup complete

Availability On Request

£103.63
  • Suction cup complete model: ESS-100-EU
  • Suction cup diameter: 100 mm
  • Min. workpiece radius: 200 mm
  • Nominal size: 6 mm
  • Suction cup volume: 84.66 cubic centimeters
  • Suction cup shape: Round extra deep
  • Operating pressure range: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • Corrosion resistance class: CRC 1 (Low corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364 zone III
  • Suitable for use with food (refer to supplementary material information)
  • Ambient temperature range: -20°C to 60°C
  • Holding force at nominal operating pressure: 440.8 N
  • Lateral force at nominal operating pressure: 352.5 N
  • Product weight: 228 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M10
  • Colour: Blue
  • Shore hardness: 60 +/- 5
  • Material: Suction cup made of PUR, screwed plug made of POM, nickel-plated steel, steel (galvanised and chrome-plated)
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ESS-100-EU
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£103.63
