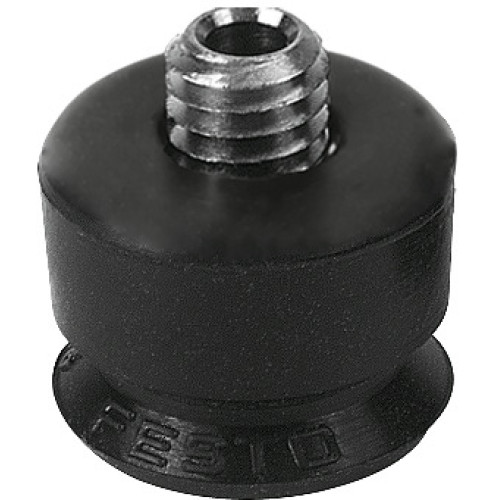

ESS-15-SNA Suction cup complete

Manufacturer's No: ESS-15-SNA     Manufacturer: Festo
ESS-15-SNA Suction cup complete

Availability On Request

£13.11
  • Min. workpiece radius: 35 mm
  • Nominal size: 2 mm
  • Suction cup diameter: 15 mm
  • Suction cup volume: 0.208 ccm
  • Special characteristics: Antistatic
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa to 0 kPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi)
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Surface resistance: 0.0002 ohm
  • Corrosion resistance class CRC: 1 (Low corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: -10°C to 70°C
  • Holding force at nominal operating pressure: 8.5 N
  • Lateral force at nominal operating pressure: 13.5 N
  • Product weight: 1.9 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M4
  • Colour: Black/white dot
  • Shore hardness: 50 +/- 5
  • Material screwed plug: Nickel-plated brass
  • Note on materials: RoHS-compliant
  • Material suction cup: NBR


Product

Manufacturer Material ID -
ESS-15-SNA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£13.11
