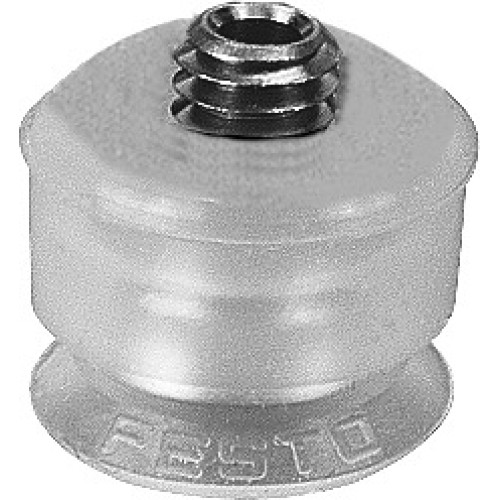

ESS-15-SS Suction cup complete

Manufacturer's No: ESS-15-SS     Manufacturer: Festo
ESS-15-SS Suction cup complete

Availability On Request

£9.56
  • Suction cup model: ESS-15-SS
  • Min. workpiece radius: 35 mm
  • Nominal size: 2 mm
  • Suction cup diameter: 15 mm
  • Suction cup volume: 0.208 cubic centimeters
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • Corrosion resistance class CRC: 1 (Low corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature: -30°C to 180°C
  • Holding force at nominal operating pressure: 8.5 N
  • Lateral force at nominal operating pressure: 6.5 N
  • Product weight: 1.9 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M4
  • Colour: Transparent
  • Shore hardness: 50 +/- 5
  • Material screwed plug: Nickel-plated brass
  • Material suction cup: VMQ (silicone)
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ESS-15-SS
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
