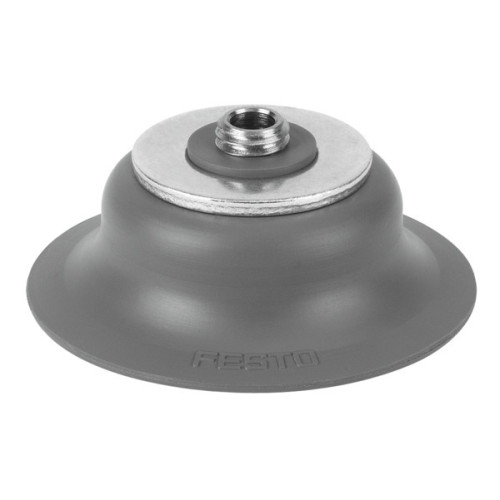

ESS-20-SF Suction cup complete

Manufacturer's No: ESS-20-SF     Manufacturer: Festo
ESS-20-SF Suction cup complete

Availability Back Order

£29.16
  • Min. workpiece radius: 60 mm
  • Nominal size: 3 mm
  • Suction cup diameter: 20 mm
  • Suction cup volume: 0.318 ccm
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa, 0 kPa, -0.95 bar, 0 bar, -13.775 psi, 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-A1-L

Read more

  • Ambient temperature: -10°C to 200°C
  • Holding force at nominal operating pressure: 16.3 N
  • Lateral force at nominal operating pressure: 15.5 N
  • Product weight: 6.4 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M6
  • Colour: Grey
  • Shore hardness: 60 +/- 5
  • Material screwed plug: Nickel-plated brass, Steel, galvanised and chrome-plated
  • Material suction cup: FPM
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
ESS-20-SF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability Back Order

£29.16
