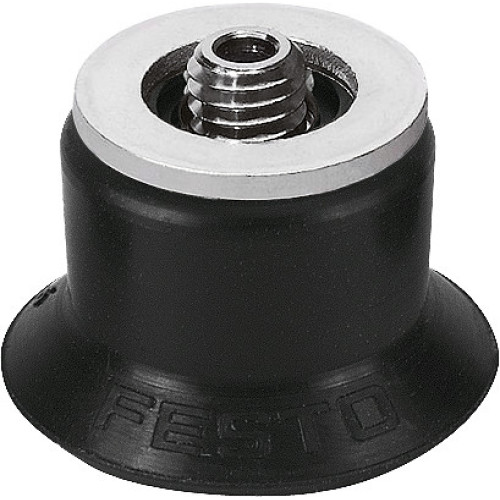

ESS-20-SN Suction cup complete

Manufacturer's No: ESS-20-SN     Manufacturer: Festo
ESS-20-SN Suction cup complete

Availability On Request

£8.43
  • Suction cup model: ESS-20-SN
  • Min. workpiece radius: 60 mm
  • Nominal size: 3 mm
  • Suction cup diameter: 20 mm
  • Suction cup volume: 0.318 cubic centimeters
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Corrosion resistance class CRC: 1 (Low corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: -10°C to 70°C
  • Holding force at nominal operating pressure: 16.3 N
  • Lateral force at nominal operating pressure: 11.5 N
  • Product weight: 6.4 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M6
  • Colour: Black
  • Shore hardness: 60 +/- 5
  • Material: Suction cup - NBR, screwed plug - Nickel-plated brass, steel (galvanised and chrome-plated)
  • RoHS-compliant materials
  • Suitable for use with food (refer to supplementary material information)


Product

Manufacturer Material ID -
ESS-20-SN
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
